Question about spacers
#1
Registered User
Thread Starter
Question about spacers
I got my Ichiba V2 in the mail today and was wondering if the middle piece is built in to the spacer or seperate.. These came with the rings built in but the V1 I accidentally ordered a few weeks ago had the ring in the center seperate from the spacer.. Are these the right spacers?
#2
Registered Member
The studs are built-in to the spacer which are meant to eliminate the need to replace the existing studs on your wheel hub. The nuts, however, should be taken off and used for installing the spacers.
Hope this answers your question since I wasn't really sure what you are asking.
Hope this answers your question since I wasn't really sure what you are asking.
#3
Registered User
Thread Starter
Question about spacers

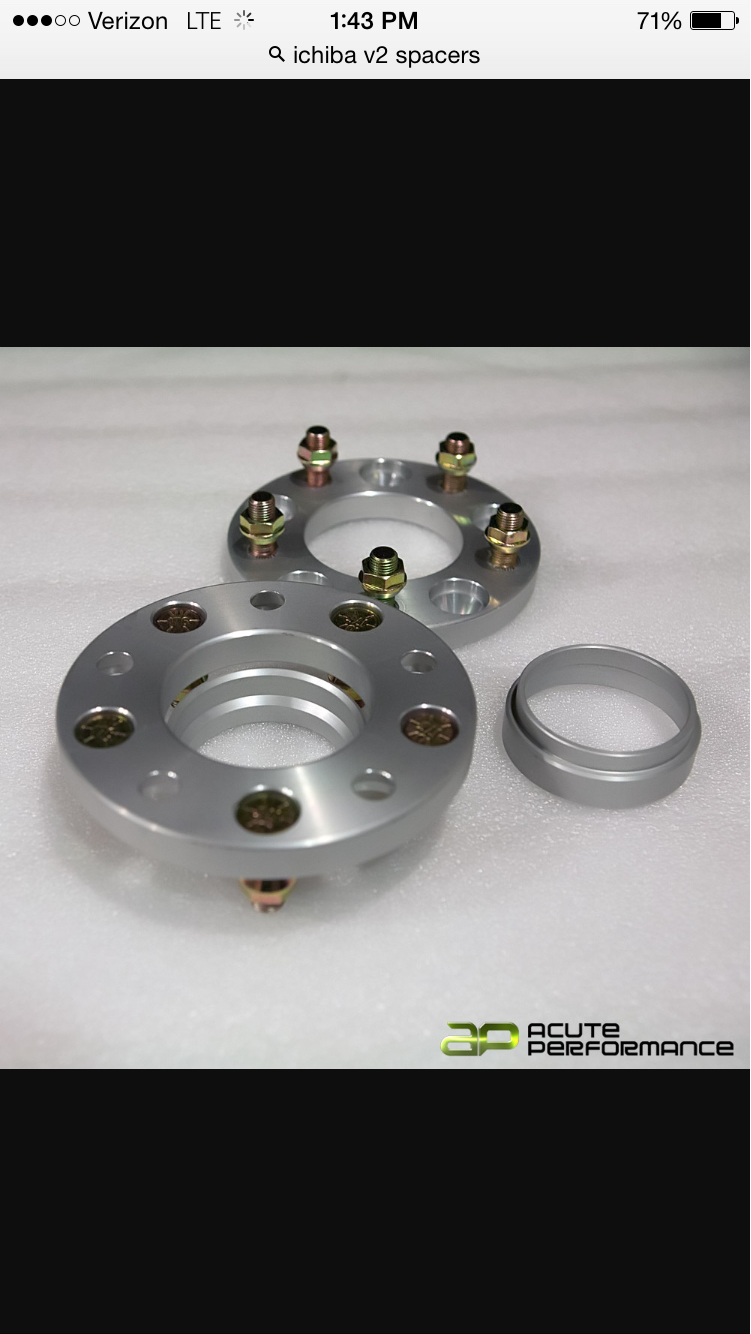

Sorry for not making it clear enough.. I didn't really know how to ask lol but here's what I'm talking about.. The ring on the right thats seperate from the spacer.. Mine is stationary where this one can slide in and out. Does that help?
#4
Registered Member
Everything on your spacers is ready for installation.
The following users liked this post:
VMRWheels (03-30-2016)
#5
Registered User
Thread Starter
Question about spacers
Ok good.. I thought I was gonna have to send them back again. Thanks! Its just weird because if you google search the v2 spacers it shows that most of them have the ring separate.
#6
Former Sponsor
Are you installing these with the OEM/stock wheels or aftermarket wheels?
Trending Topics
#8
Registered User
Thread Starter
#9
Former Sponsor

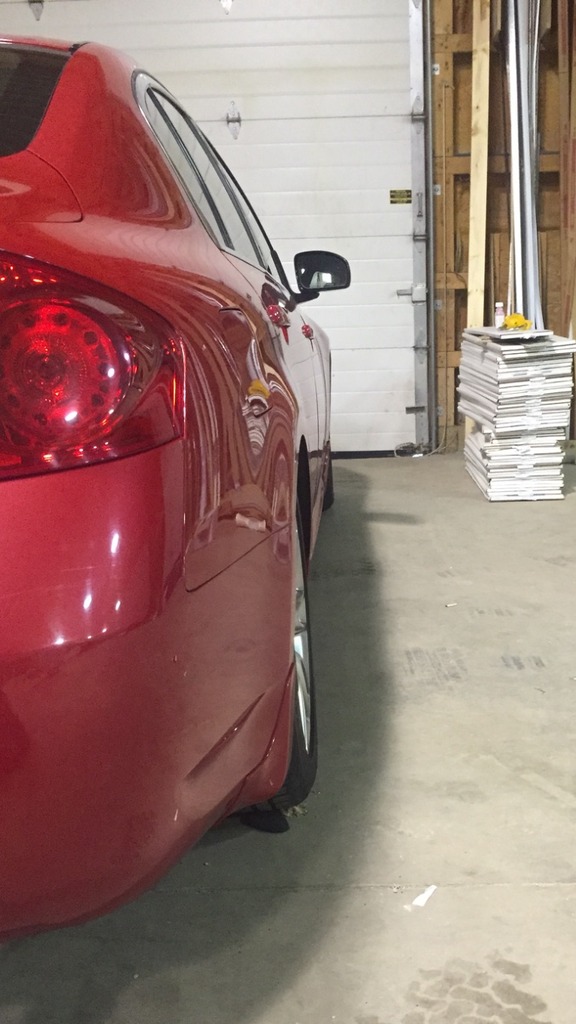

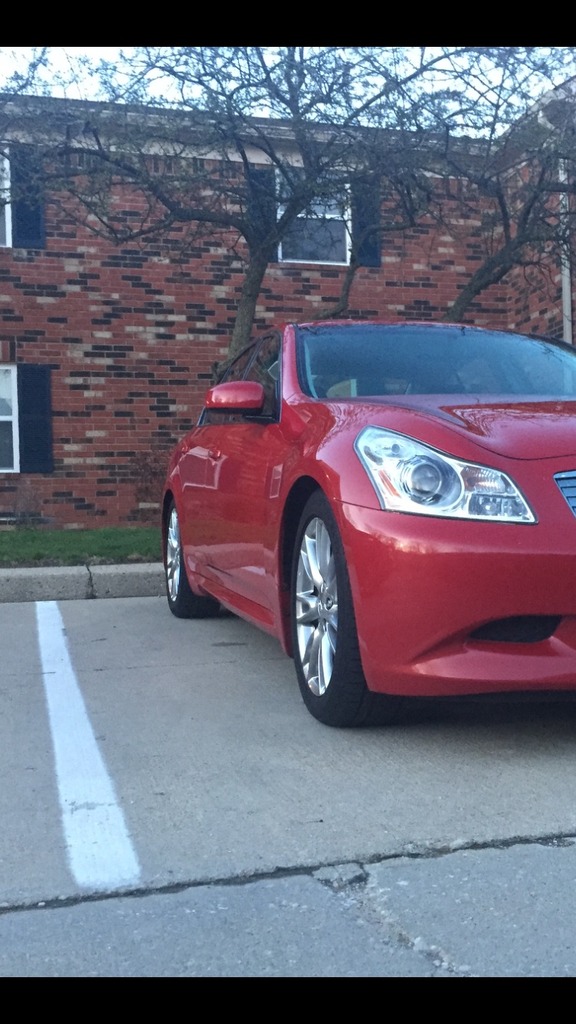

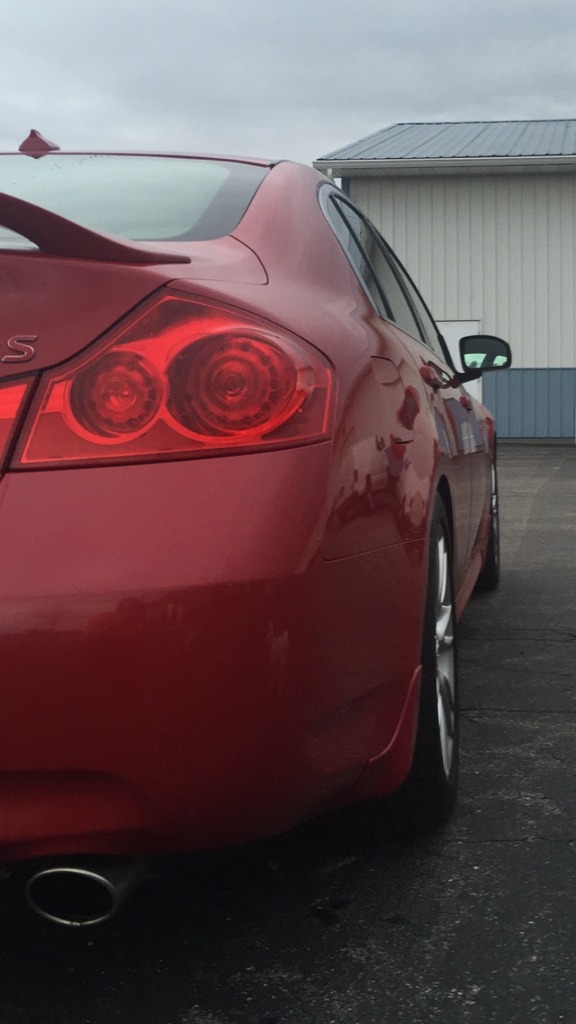

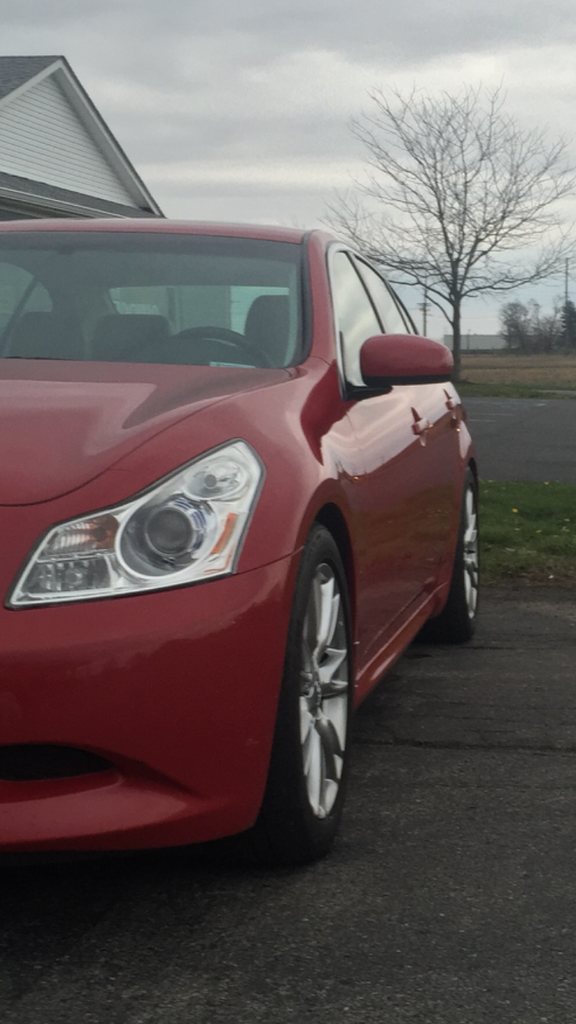

Looks MUCH better, nice work!
I asked about OEM Vs Aftermarket wheels as most aftermarket wheels will require hubcentric rings. However, these were used to space OEM, so that's a non-issue
I asked about OEM Vs Aftermarket wheels as most aftermarket wheels will require hubcentric rings. However, these were used to space OEM, so that's a non-issue
#10
Administrator
iTrader: (9)
Looks great, OP. Well done.

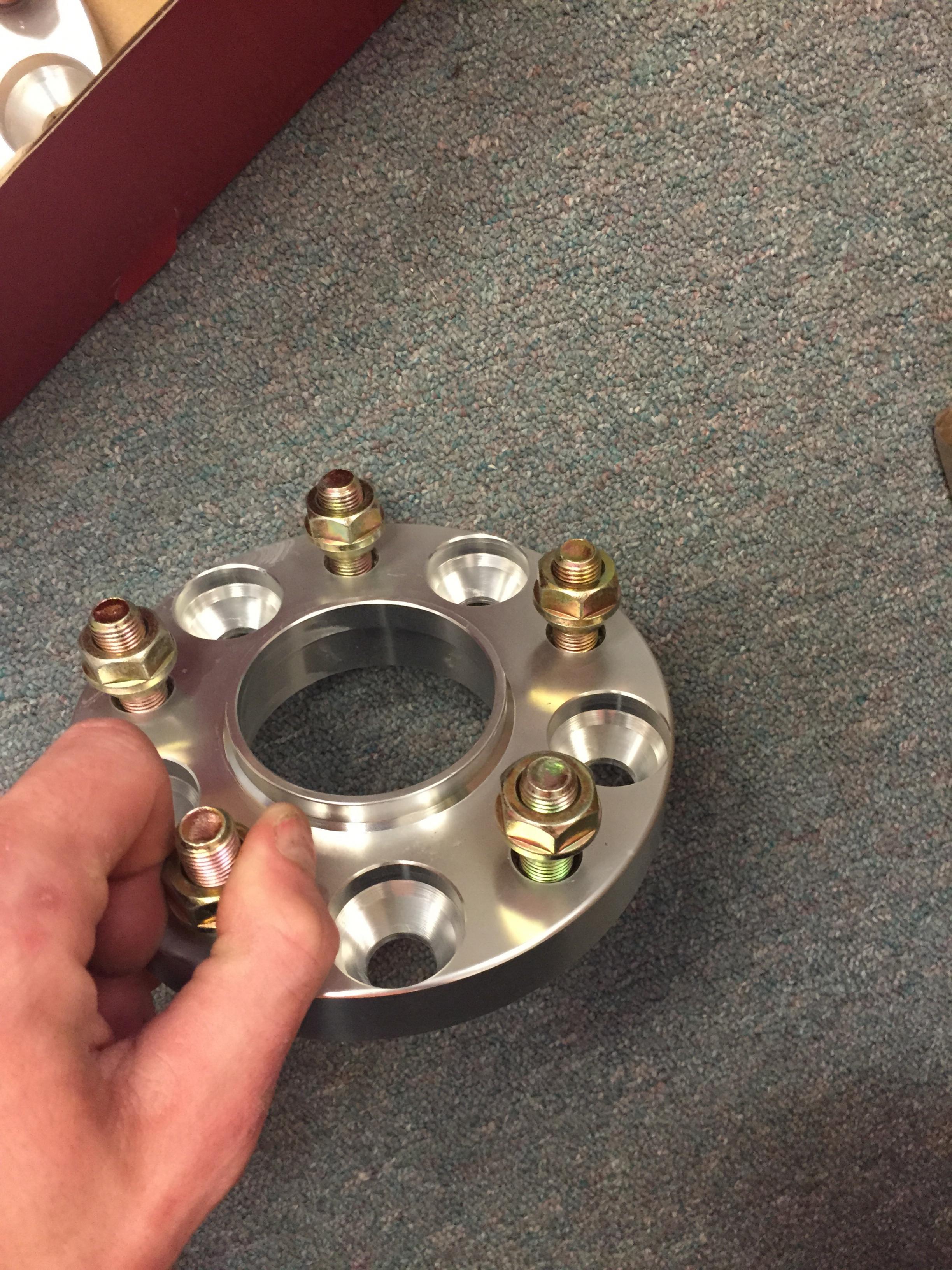

The picture with the nuts on the spacer studs, those look like flange nuts. Maybe that's just the angle of the photo, because obviously you need (typical aftermarket) tapered lug nuts for the spacers themselves. Let's hope once installed, you won't be removing and re-installing the spacers again... half-height lug nuts suck donkey *****, and can so easily strip the hex heads.
Last edited by Rochester; 03-31-2016 at 08:42 AM.
#11
Registered User
Thread Starter
Question about spacers
^^ Yeah it's such a huge difference. I stripped one of those heads your talking about putting them on. It doesn't help that they are brass either.. I'm going to be removing them once I get rims with the correct offset and only using the spacers and OEMs as my winter set up. Let's hope I don't run into trouble removing them when the time comes.
#12
Administrator
iTrader: (9)
^^ Yeah it's such a huge difference. I stripped one of those heads your talking about putting them on. It doesn't help that they are brass either.. I'm going to be removing them once I get rims with the correct offset and only using the spacers and OEMs as my winter set up. Let's hope I don't run into trouble removing them when the time comes.
But (!!!) there is a solution. Note that on the backside of your wheel there is a sculpted area between the lug holes, directly over where those half-height lug-nuts are in your spacers. This means you can use lugnuts on the spacers which extend out beyond the surface of the spacer.
I'm using a cheap set of spline-drive lugnuts there. Problem solved.
The reason why I still had a half-height nut was that I only had 18 of these spline-drive lugnuts available, and used two of the nuts that came with the spacers. And then, of course, I stripped one of them.
Here's a picture of all three: the half-height crapola nut, the cheap spline drive nut, and the OEM lug nut.
#14
Premier Member
iTrader: (2)
Rochester are those the b2 spacers? only reason why I ask is because I m about to pick up a set.
Nick - I ve seen a bunch of people run spacers, personally for me I would rather not run them at all because of the things you mentioned. Out of all the people I know running spacers none have ever had a problem other then a stripped nut or maybe their wheel bearing go bad but that can be caused by a bunch of reasons. As long as you torque the nuts to the specific specs you should be good and making sure that the spacers are on flush with the hub, take some time to remove any rust. Also if you are not using bolt on spacers make sure you get extended studs. Also get hubcentric spacers.
The best spacer is no spacer, but some brands may be better than others I would look into the H&R ones but they can get quite pricey. I ran the B2 auto design ones and they were fine.
Nick - I ve seen a bunch of people run spacers, personally for me I would rather not run them at all because of the things you mentioned. Out of all the people I know running spacers none have ever had a problem other then a stripped nut or maybe their wheel bearing go bad but that can be caused by a bunch of reasons. As long as you torque the nuts to the specific specs you should be good and making sure that the spacers are on flush with the hub, take some time to remove any rust. Also if you are not using bolt on spacers make sure you get extended studs. Also get hubcentric spacers.
The best spacer is no spacer, but some brands may be better than others I would look into the H&R ones but they can get quite pricey. I ran the B2 auto design ones and they were fine.
The following users liked this post:
xnick101 (03-31-2016)
#15
Administrator
iTrader: (9)
As long as you torque the nuts to the specific specs you should be good and making sure that the spacers are on flush with the hub, take some time to remove any rust. Also if you are not using bolt on spacers make sure you get extended studs. Also get hubcentric spacers.
I still wouldn't autocross a car with spacers, but as long as things are mounted properly, you can daily-drive the heck out of them without worries.
