The OFFICIAL "I have a wheel offset / tire fitment question!" thread

Thread Tools

Search this Thread

Old 02-21-2014, 12:32 AM
  #121
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,943 Likes on 4,176 Posts
Originally Posted by A_Palaroan
Just got my new tires and thought i would share to help everyone out with fitment.

Suspension: Dropped on Eibach Pro Kit
Wheels: Front=20x9 +25 w/255/35/20 Michelin Pilot super sport
Rear=20x10.5 +38 W/ 295/30/20 michelin Pilot super sport
no rubbing what so ever but looks like my struts/shocks are shot because my front left is lower then the right side and the rear right is lower then the rear left.
Nice! Post up some pics when you can. And since you're rockin 295s you need to post in the fatty thread~
https://www.myg37.com/forums/wheels-...fat-tires.html
Old 02-23-2014, 04:43 PM
  #122
A_Palaroan
Registered User
iTrader: (2)

A_Palaroan's Avatar

Join Date: Mar 2010
Location: San Diego/Lake Tahoe
Posts: 1,011
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by blnewt
Nice! Post up some pics when you can. And since you're rockin 295s you need to post in the fatty thread~
https://www.myg37.com/forums/wheels-...fat-tires.html
will do. I just ordered some stance coil overs from THMotorsports so when i instal them ill post some pics up.
Old 03-09-2014, 01:18 PM
  #123
G374U2NV
Registered User

G374U2NV's Avatar

Join Date: Feb 2014
Location: Dallas
Posts: 9
Likes: 0
Received 1 Like on 1 Post
Ok, I'm ready for the flaming, but I can't find the answers I need. There are some wheels for sale here local with these specs.
Front wheels are 20x9 +45 offset, rears 20x10.5 +38 offset

They were on a coupe, is there any chance these will fit a sedan without stretching tires, and would I be able to fit at least a 275 in back? Car is stock but will be getting a drop soon.
Old 03-09-2014, 06:22 PM
  #124
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,943 Likes on 4,176 Posts
Originally Posted by G374U2NV
Ok, I'm ready for the flaming, but I can't find the answers I need. There are some wheels for sale here local with these specs.
Front wheels are 20x9 +45 offset, rears 20x10.5 +38 offset

They were on a coupe, is there any chance these will fit a sedan without stretching tires, and would I be able to fit at least a 275 in back? Car is stock but will be getting a drop soon.
It would be better if the offsets were reversed (w/ the +38 in front and +45 in back). The 10.5s w/ +45 running 295s are barely inside the fenders when dropped on Eibachs, so the 275s will clear but the wheels will be sticking out a bit. 275s are a straight mount on 10.5s so they won't be stretched, but the +38 on those wheels will bring them out right to the fender edge. Here's some 10.5 +45 for reference (on 295s)
https://www.myg37.com/forums/g37-sed...rwd-sedan.html
Old 03-10-2014, 07:42 AM
  #125
G374U2NV
Registered User

G374U2NV's Avatar

Join Date: Feb 2014
Location: Dallas
Posts: 9
Likes: 0
Received 1 Like on 1 Post
Thanks, I thought the guy may have been wrong on the offset and was correct, the 45 was out back so I picked them up. Now to swap the 265 for some 275 or 285 and I'll be set. You think I should go 30 or 35 for the sidewall?
Old 03-10-2014, 09:06 AM
  #126
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,943 Likes on 4,176 Posts
Originally Posted by G374U2NV
Thanks, I thought the guy may have been wrong on the offset and was correct, the 45 was out back so I picked them up. Now to swap the 265 for some 275 or 285 and I'll be set. You think I should go 30 or 35 for the sidewall?
For your staggered set I'd run 245/35/20 Front 285/30/20 Rear, you & your car will be happy w/ that size
Old 03-10-2014, 09:31 AM
  #127
G374U2NV
Registered User

G374U2NV's Avatar

Join Date: Feb 2014
Location: Dallas
Posts: 9
Likes: 0
Received 1 Like on 1 Post
That's what I did, already had 245/35 up front, the 285/30s go on this afternoon
Old 03-10-2014, 06:34 PM
  #128
G374U2NV
Registered User

G374U2NV's Avatar

Join Date: Feb 2014
Location: Dallas
Posts: 9
Likes: 0
Received 1 Like on 1 Post

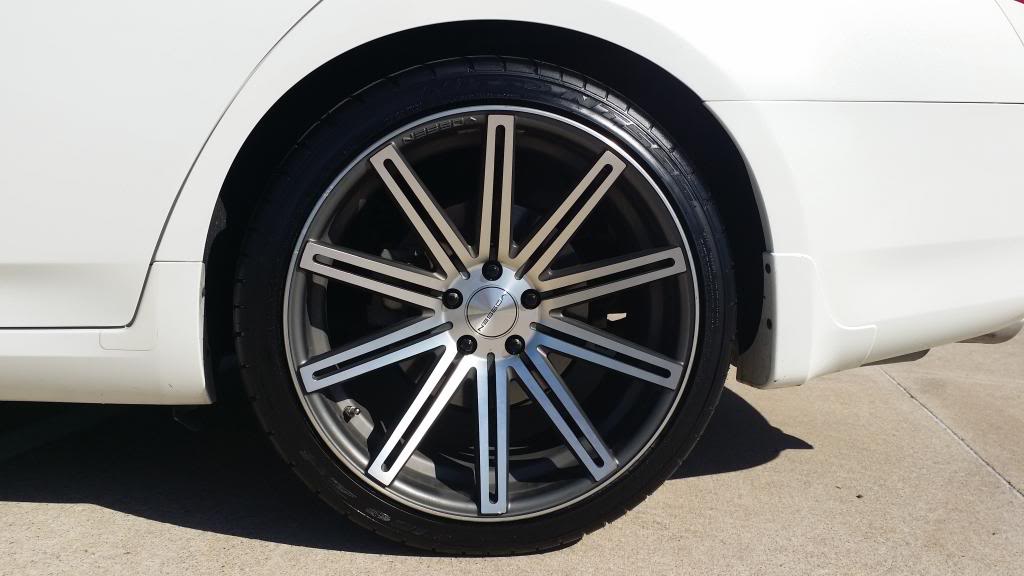

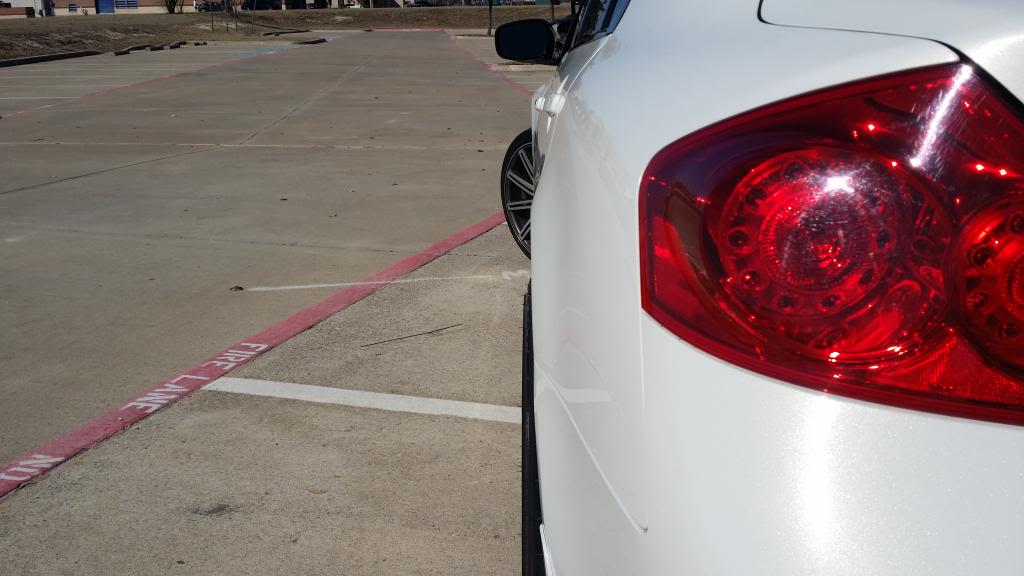

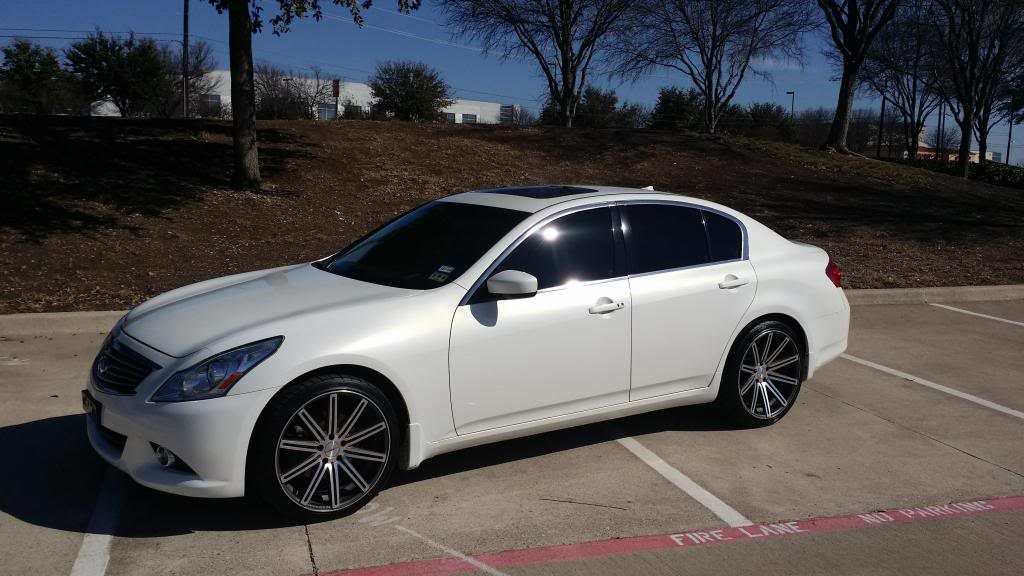

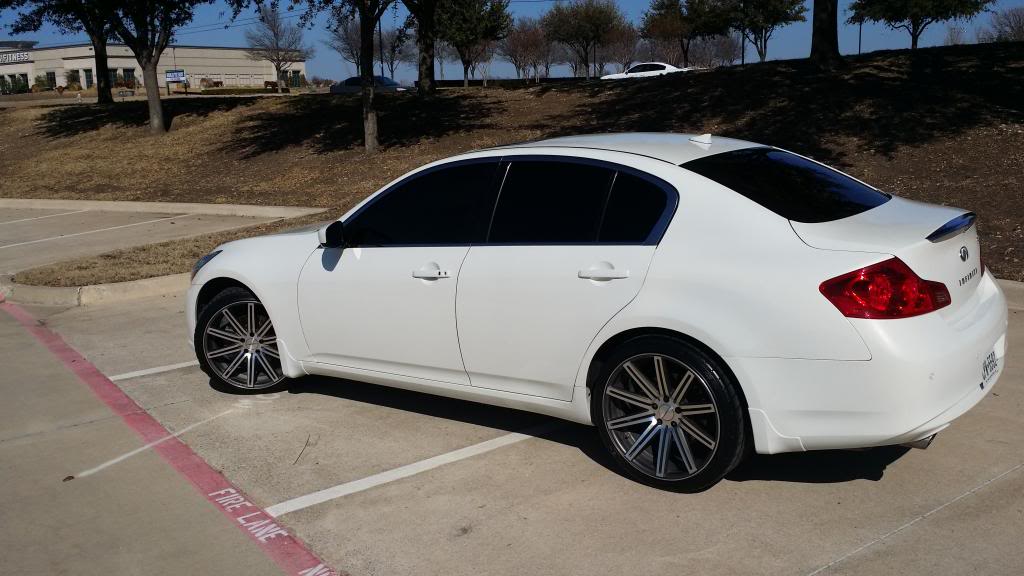

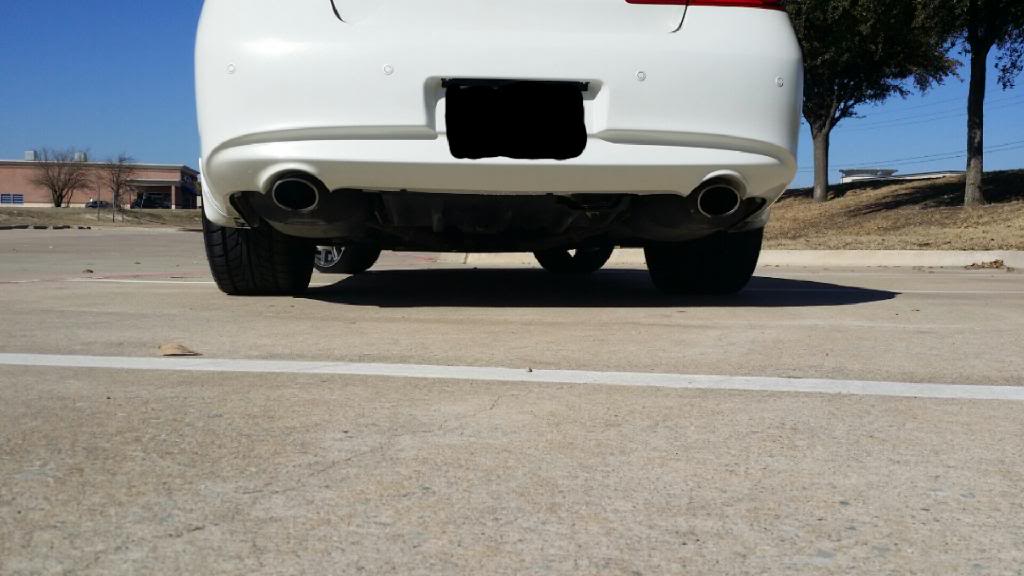

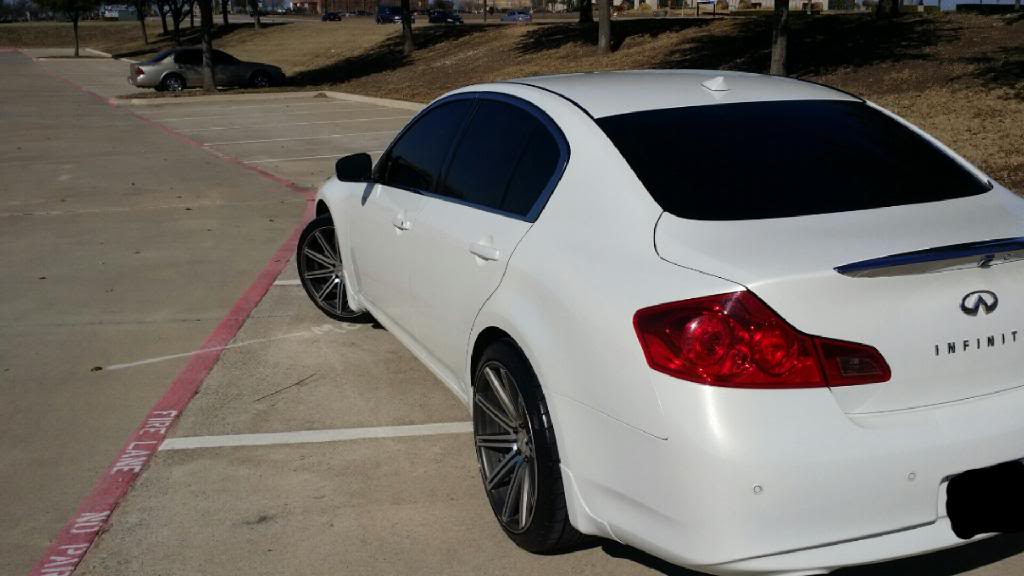

Got them mounted today, 245/35 up front and 285/30 out back. Vossen CV4 20x9 +38 and 20x10.5 +45.

Drop to come shortly.

Name:  2014-03-10%2017.01.06.jpg
Views: 602
Size:  68.5 KB

Name:  20140310_160750.jpg
Views: 576
Size:  82.0 KB

Name:  20140310_160831.jpg
Views: 591
Size:  63.0 KB

Name:  2014-03-10%2017.31.47.jpg
Views: 594
Size:  62.3 KB

Name:  20140310_160914.jpg
Views: 605
Size:  85.6 KB

Name:  20140310_160937.jpg
Views: 590
Size:  65.3 KB
Old 03-10-2014, 08:13 PM
  #129
pebkac
Registered User

pebkac's Avatar

Join Date: Jul 2013
Location: Austin Tx
Posts: 241
Received 22 Likes on 18 Posts
Clean ^^
Old 03-10-2014, 08:29 PM
  #130
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,943 Likes on 4,176 Posts
Gonna be a great fit w/ the drop G374U2NV, post more pics when you're down.
Old 03-10-2014, 09:02 PM
  #131
Dat_G
Registered User

Dat_G's Avatar

Join Date: Feb 2014
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Hey guys, I think (I hope) I've done my homework and I want to pull the trigger on a set of wheels but I wanted to see if anyone who has a similar setup has some input/advice here first. I want to go as aggressive as possible without pulling the fenders, and I'm looking at the Work Kiwamis.

I've got a '10 G37s Sedan

Front: 19"x 9.5 +25
Rear 19"x10.5 +32

For tires I'm gonna stretch them a bit, nothing too crazy. Thinkin 255/40(35?) in the back and 235/40(35?) in the front.

Going to be getting either tanabe coils or swift springs, haven't decided yet but I wont to flat out slamming it since the roads are garbage where I live.

Last edited by Dat_G; 03-10-2014 at 09:23 PM.
Old 03-11-2014, 12:06 AM
  #132
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,943 Likes on 4,176 Posts
Originally Posted by Dat_G
Hey guys, I think (I hope) I've done my homework and I want to pull the trigger on a set of wheels but I wanted to see if anyone who has a similar setup has some input/advice here first. I want to go as aggressive as possible without pulling the fenders, and I'm looking at the Work Kiwamis.

I've got a '10 G37s Sedan

Front: 19"x 9.5 +25
Rear 19"x10.5 +32

For tires I'm gonna stretch them a bit, nothing too crazy. Thinkin 255/40(35?) in the back and 235/40(35?) in the front.

Going to be getting either tanabe coils or swift springs, haven't decided yet but I wont to flat out slamming it since the roads are garbage where I live.
Here's Natalies Sedan on 10.5 +45 all around on 255/30/20s for reference
https://www.myg37.com/forums/picture...g37-sedan.html
As you can see that's pretty aggressive, the +32s w/ 255/40/19 will work w/ heavy camber as will the +25 in front w/ the 235/40/19. If you don't want any fender mods the camber is about the only way to get the fit and rolling the front fender will probably be needed depending how low you drop on coils.
Old 03-11-2014, 01:08 PM
  #133
Dat_G
Registered User

Dat_G's Avatar

Join Date: Feb 2014
Posts: 3
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by blnewt
Here's Natalies Sedan on 10.5 +45 all around on 255/30/20s for reference
https://www.myg37.com/forums/picture...g37-sedan.html
As you can see that's pretty aggressive, the +32s w/ 255/40/19 will work w/ heavy camber as will the +25 in front w/ the 235/40/19. If you don't want any fender mods the camber is about the only way to get the fit and rolling the front fender will probably be needed depending how low you drop on coils.

Thanks, I appreciate the input man. I was hoping the natural camber from lowering it on springs would take care of it but the math is not looking good for this set up. Gonna have to rethink my wheel choice since that's most conservative set up I can get with those wheels.
Old 03-11-2014, 09:54 PM
  #134
rare37s
Registered User

rare37s's Avatar

Join Date: Aug 2013
Posts: 34
Likes: 0
Received 6 Likes on 5 Posts
Need some help tire gurus... just received my wheels and not sure what size tires I can do to avoid any rubbing. Here's the stats: 2010 sedan s w/bbk rwd.
20x8.5 +35 front
20x10 +40 rear
Wheels: gianelle yerevan
Dropped on eibach pro kit
I was thinking 245/275 30 or 235/255 30.

The other thing is the front rims BARELY clear the bbks. Maybe just 1mm or so of clearance but the wheels spins freely. I'll be using extended lugs due to the design but should I use a very small spacer for better clearance. 3mm or 5mm
Old 03-11-2014, 10:18 PM
  #135
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,943 Likes on 4,176 Posts
Originally Posted by rare37s
Need some help tire gurus... just received my wheels and not sure what size tires I can do to avoid any rubbing. Here's the stats: 2010 sedan s w/bbk rwd.
20x8.5 +35 front
20x10 +40 rear
Wheels: gianelle yerevan
Dropped on eibach pro kit
I was thinking 245/275 30 or 235/255 30.

The other thing is the front rims BARELY clear the bbks. Maybe just 1mm or so of clearance but the wheels spins freely. I'll be using extended lugs due to the design but should I use a very small spacer for better clearance. 3mm or 5mm
CZP recommends at least 2mm clearance so a 3mm spacer would be a good idea and you should have enough thread exposed for a safe install. My wheels are close to you specs and I'm running 245/35/20F 295/30/20 rear. With your specs I'd run 245/35/20F and 275/30/20 or 285/30/20 on the back.You should run 35 series in front and 30 series in back for diameter to be closest to OEM.
Here's my setup for reference on 8.5+40F 10+45R
