The OFFICIAL "I have a wheel offset / tire fitment question!" thread
#541
Registered User
iTrader: (1)
Well I have researched and I'm a little confused im about to purchase some wheels and tires in about a week. I'm looking at the verde V99. My car is lowered on ark springs and my question is what are good offsets to run? I prefer the flush/aggressive look but not the hellaflush crazy camber. The wheels will be 20x9 and 20x10.5 with 245/35/20 and either a 275 or 285 30 rear. The front come in either a +20 or +30 and the rear come in +25 or +45. Thoughs or suggestions?
#542
Movin On!
iTrader: (13)
Well I have researched and I'm a little confused im about to purchase some wheels and tires in about a week. I'm looking at the verde V99. My car is lowered on ark springs and my question is what are good offsets to run? I prefer the flush/aggressive look but not the hellaflush crazy camber. The wheels will be 20x9 and 20x10.5 with 245/35/20 and either a 275 or 285 30 rear. The front come in either a +20 or +30 and the rear come in +25 or +45. Thoughs or suggestions?
TreadDepot.com: Niche Custom Targa Silver Machined Wheels
The 8.5 +25 and 10.5 +30 sets would be good.
The following users liked this post:
Kris 3.7 (02-05-2015)
#544
Movin On!
iTrader: (13)
What size spacers are best on stock non sport 18' wheels?
Lowered on Tein S techs.

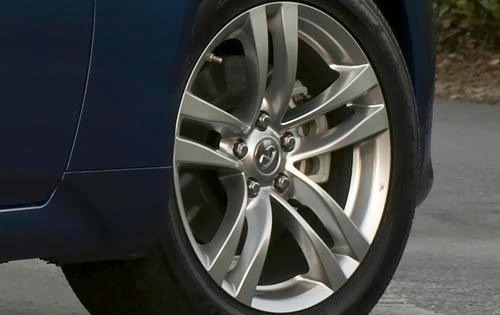

See pic below
I've seen 20mm all around, but also seen 20 front/25 rear, and 20 front/15 rear.
The stocks are 18x8 +43mm offset I believe, which should be the same as the sport 19' wheels (19x8.5 +43)
Lowered on Tein S techs.
See pic below
I've seen 20mm all around, but also seen 20 front/25 rear, and 20 front/15 rear.
The stocks are 18x8 +43mm offset I believe, which should be the same as the sport 19' wheels (19x8.5 +43)
#546
Registered User
iTrader: (1)
Those offsets are a bit much on either end of the range, a bit too aggressive in back w/ the +20 and too conservative w/ the +45. You could run the +30 in front and the +45 in back and space the back about 10mm to flush them up a bit. You might look at these Niche wheels if you like that style, they should have better offsets
TreadDepot.com: Niche Custom Targa Silver Machined Wheels
The 8.5 +25 and 10.5 +30 sets would be good.
TreadDepot.com: Niche Custom Targa Silver Machined Wheels
The 8.5 +25 and 10.5 +30 sets would be good.
#547
The Steering Wheel Guy
iTrader: (12)
On a coupe with in spec camber a 20x10.5 +35 will put the wheel right at the fender. If you put a 285 tire on that wheel, I'm almost certain you will rub the fender liner and bumper bracket. So if you plan on not trimming anything, the +45 is your best bet. I have 20x10.5 +35 with -1.7 to -1.8 degrees of camber and a 255/35R20 tire and I just barely clear the fender liner and bumper bracket with Eibach springs. The +25 is very aggressive and is probably suited best for a coilover drop and a bit of extra camber and trimming.
The following users liked this post:
Kris 3.7 (02-05-2015)
#549
Registered User
Will this work?
All,
Please let me know if this will work on eibach pro kit springs
MIRO WHEELS TYPE 111
19x9.5
Bolt Pattern [?]: 5x114.3mm (5x4.5")
Backspace : 6.875"
Offset [?]: 40mm
FEDERAL TIRES
SS595
Size: 245/40ZR19
Thanks in advance
Please let me know if this will work on eibach pro kit springs
MIRO WHEELS TYPE 111
19x9.5
Bolt Pattern [?]: 5x114.3mm (5x4.5")
Backspace : 6.875"
Offset [?]: 40mm
FEDERAL TIRES
SS595
Size: 245/40ZR19
Thanks in advance
#552
Registered User
Thanks so much for all of your pointers/suggestions/help. I'm new to the forums and you've replied to most if not all of my questions. Really appreciate it.
Obviously i would like to sit flush without rubbing but spacers freak me out with regards to dealing with wheel bearing issues etc. Maybe best off looking for lower offset wheels because i definitely want to stick to the squared setup
#553
Movin On!
iTrader: (13)
Sport coupe
Thanks so much for all of your pointers/suggestions/help. I'm new to the forums and you've replied to most if not all of my questions. Really appreciate it.
Obviously i would like to sit flush without rubbing but spacers freak me out with regards to dealing with wheel bearing issues etc. Maybe best off looking for lower offset wheels because i definitely want to stick to the squared setup
Thanks so much for all of your pointers/suggestions/help. I'm new to the forums and you've replied to most if not all of my questions. Really appreciate it.
Obviously i would like to sit flush without rubbing but spacers freak me out with regards to dealing with wheel bearing issues etc. Maybe best off looking for lower offset wheels because i definitely want to stick to the squared setup
https://www.myg37.com/forums/brakes-...ml#post3815735
So if you can find wheels you like in a +30 offset that would be ideal, or even a +35 would be better.
Here's a few other wheels that might work better for you without needing spacers.
Only in matte black but in a 19x9.5 +30
http://www.nicheroadwheels.com/circuit-m110--w-8785.htm
In a +35 on a different wheel
http://www.nicheroadwheels.com/targa-m129--w-7870.htm
And Silver
http://www.nicheroadwheels.com/targa-m131-w-5336.htm
And if you can expand your budget a bit these SSRs are a very nice wheel, and they have a 20% off code so you can get those wheels for about $375
SSR GTV03 Wheels - Free Shipping SSR GT V03 V Spoke Rims - 17, 18 & 19" Wheels
Just keep in mind that you have to clear those big front calipers, I know the SSRs will and most of the others should but here's a template you can send to a vendor if they're not sure
http://infinitig37.com/tech-images/akebonotemplate.pdf
Good Luck!
Brad
#554
Registered User
Take a look at Lt8ches' coupe, he's running square 9.5 +30 on 265 width tires, nice flush setup all around and also on an Eibach drop~
https://www.myg37.com/forums/brakes-...ml#post3815735
So if you can find wheels you like in a +30 offset that would be ideal, or even a +35 would be better.
Here's a few other wheels that might work better for you without needing spacers.
Only in matte black but in a 19x9.5 +30
http://www.nicheroadwheels.com/circuit-m110--w-8785.htm
In a +35 on a different wheel
http://www.nicheroadwheels.com/targa-m129--w-7870.htm
And Silver
http://www.nicheroadwheels.com/targa-m131-w-5336.htm
And if you can expand your budget a bit these SSRs are a very nice wheel, and they have a 20% off code so you can get those wheels for about $375
SSR GTV03 Wheels - Free Shipping SSR GT V03 V Spoke Rims - 17, 18 & 19" Wheels
Just keep in mind that you have to clear those big front calipers, I know the SSRs will and most of the others should but here's a template you can send to a vendor if they're not sure
http://infinitig37.com/tech-images/akebonotemplate.pdf
Good Luck!
Brad
https://www.myg37.com/forums/brakes-...ml#post3815735
So if you can find wheels you like in a +30 offset that would be ideal, or even a +35 would be better.
Here's a few other wheels that might work better for you without needing spacers.
Only in matte black but in a 19x9.5 +30
http://www.nicheroadwheels.com/circuit-m110--w-8785.htm
In a +35 on a different wheel
http://www.nicheroadwheels.com/targa-m129--w-7870.htm
And Silver
http://www.nicheroadwheels.com/targa-m131-w-5336.htm
And if you can expand your budget a bit these SSRs are a very nice wheel, and they have a 20% off code so you can get those wheels for about $375
SSR GTV03 Wheels - Free Shipping SSR GT V03 V Spoke Rims - 17, 18 & 19" Wheels
Just keep in mind that you have to clear those big front calipers, I know the SSRs will and most of the others should but here's a template you can send to a vendor if they're not sure
http://infinitig37.com/tech-images/akebonotemplate.pdf
Good Luck!
Brad
#555
Im looking at two rims to buy. I am currently on BC coilover
HY ? Hybris Machined | Advanti Racing Wheels USA
Will these wheels clear big brake?
19X8.5 with 245/40/19 They come in +35, 40, and 45 offset
19X9.5 with 285/35/19 They come in +40 and 42
What would be a good offset for front and rear? From what I have read +35 in front and +40 in rear?
Same question for Avant Garde 580 bespoke. Since everything is custom, what would be a good offset for front and back for a nice flush look?
Thanks
HY ? Hybris Machined | Advanti Racing Wheels USA
Will these wheels clear big brake?
19X8.5 with 245/40/19 They come in +35, 40, and 45 offset
19X9.5 with 285/35/19 They come in +40 and 42
What would be a good offset for front and rear? From what I have read +35 in front and +40 in rear?
Same question for Avant Garde 580 bespoke. Since everything is custom, what would be a good offset for front and back for a nice flush look?
Thanks
