Old 01-04-2015, 11:43 PM
  #496
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,943 Likes on 4,176 Posts
Originally Posted by kimchi29
Alright picked up some new wheels
Rotiform TMB
Fronts - 19x10 et20
Rears - 19x10.5 et48




Now im not too sure what tires i should get. These will be going on a 2014 Infiniti Q50 so fitment should be similar to a G37 sedan.

Local tire shop was saying 245/35 for the front and 255/35 for the rear. I drive my car (canyons once a week) and i think that the sizes they recommend have too much stretch. Any recommendations for tire sizes? Im going more for the fat tire than stretch.
The rears would be a reasonable offset for a standard 275/35/19 fit, the fronts will be a tough fit as the offset is very aggressive for a wheel that wide. You're going to have to run very stretched, especially if you're dropped anything more than mild. I'm not up on the front inner fender clearance but if it's similar to the G Sedan you'll rub the inner fender edge as it's not flat-rolled like the rear. Maybe the Q is flat rolled but

It may look off if you run standard in back and stretched in front so you might consider a spacer in back and then run stretched front & back, although I'm not one to recommend a stretched setup it's your best bet in this case, something like a 245/40/19 & 255/40/19 setup. I still think you'll be poking pretty good up front though.
G/L
Old 01-05-2015, 02:15 AM
  #497
kimchi29
Registered User

kimchi29's Avatar

Join Date: Jul 2010
Posts: 25
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by blnewt
The rears would be a reasonable offset for a standard 275/35/19 fit, the fronts will be a tough fit as the offset is very aggressive for a wheel that wide. You're going to have to run very stretched, especially if you're dropped anything more than mild. I'm not up on the front inner fender clearance but if it's similar to the G Sedan you'll rub the inner fender edge as it's not flat-rolled like the rear. Maybe the Q is flat rolled but

It may look off if you run standard in back and stretched in front so you might consider a spacer in back and then run stretched front & back, although I'm not one to recommend a stretched setup it's your best bet in this case, something like a 245/40/19 & 255/40/19 setup. I still think you'll be poking pretty good up front though.
G/L
Hmm i havent test fit the wheels yet will do that tomorrow. there are a couple of guys on the q50 forum that are on air and they are tucking 20x10.5 et25 in the front with just a fender roll. maybe the q50 is different. i'll test fit tomorrow and take a couple pics of how much space i have and maybe you can help me with tires then. thanks!!
Old 01-05-2015, 08:32 AM
  #498
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,943 Likes on 4,176 Posts
Originally Posted by kimchi29
Hmm i havent test fit the wheels yet will do that tomorrow. there are a couple of guys on the q50 forum that are on air and they are tucking 20x10.5 et25 in the front with just a fender roll. maybe the q50 is different. i'll test fit tomorrow and take a couple pics of how much space i have and maybe you can help me with tires then. thanks!!
With just a simple fender roll you can get quite a bit more under there.
Old 01-05-2015, 06:59 PM
  #499
wblhockey14
Registered User

wblhockey14's Avatar

Join Date: Jan 2012
Posts: 116
Likes: 0
Received 0 Likes on 0 Posts
Hi All - Just bought 20x9 +20 (235mm) and 20x10.5 +25 (255mm) CV5s. The front sits perfectly flush and I like them, but the rears stick out a bit too far for me. I have an 09 coupe S at stock height. From reading around the forum, it seems that lowering the car would allow the rears to come in a bit and give me that flush look. My question is, which lowering springs are best to achieve this? I am thinking about Swift.

Thanks

Last edited by wblhockey14; 01-05-2015 at 07:07 PM.
Old 01-05-2015, 11:02 PM
  #500
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,943 Likes on 4,176 Posts
Originally Posted by wblhockey14
Hi All - Just bought 20x9 +20 (235mm) and 20x10.5 +25 (255mm) CV5s. The front sits perfectly flush and I like them, but the rears stick out a bit too far for me. I have an 09 coupe S at stock height. From reading around the forum, it seems that lowering the car would allow the rears to come in a bit and give me that flush look. My question is, which lowering springs are best to achieve this? I am thinking about Swift.

Thanks
As you lower, the negative camber will increase which will tuck the tires into the fender within reason. If you go real low then use camber arms to bring the camber back to a reasonable range. I'd say Eibach for a mild drop and Tein S Tech or H&R springs for a deep drop, but would definitely need camber/toe kits on the last two to keep tires from getting worn out quickly.
Got any pics down the side of your car for reference?
Old 01-06-2015, 02:15 PM
  #501
wblhockey14
Registered User

wblhockey14's Avatar

Join Date: Jan 2012
Posts: 116
Likes: 0
Received 0 Likes on 0 Posts
Yes, here are some pics. As I mentioned, I am considering the swift springs which is a 1" rear drop and 1.3" front drop. It would seem I have sufficient room for that and would not need any modifications? I also do not believe a camber kit is needed with swift?

Thanks

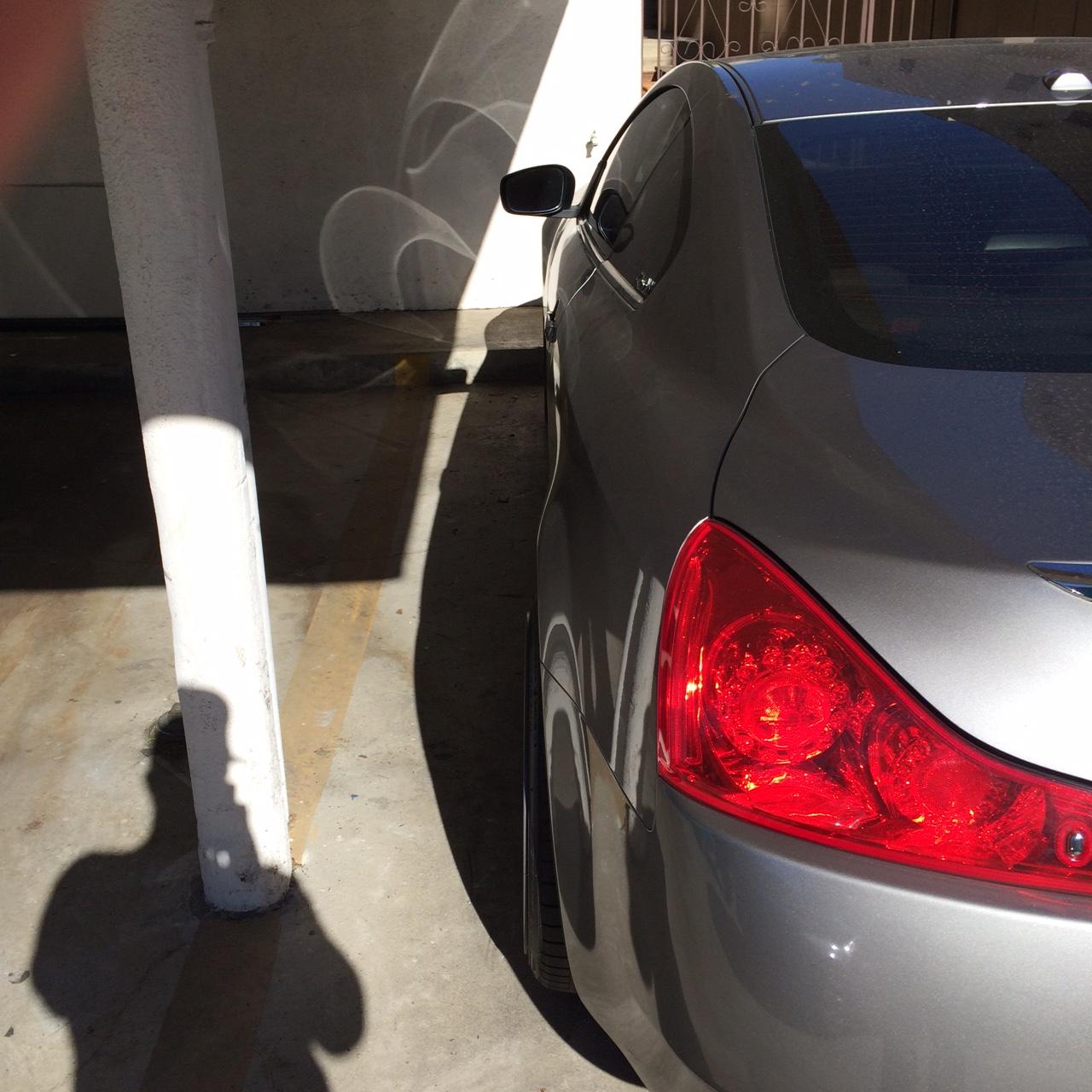

The OFFICIAL "I have a wheel offset / tire fitment question!" thread-ip1vmeb.jpg

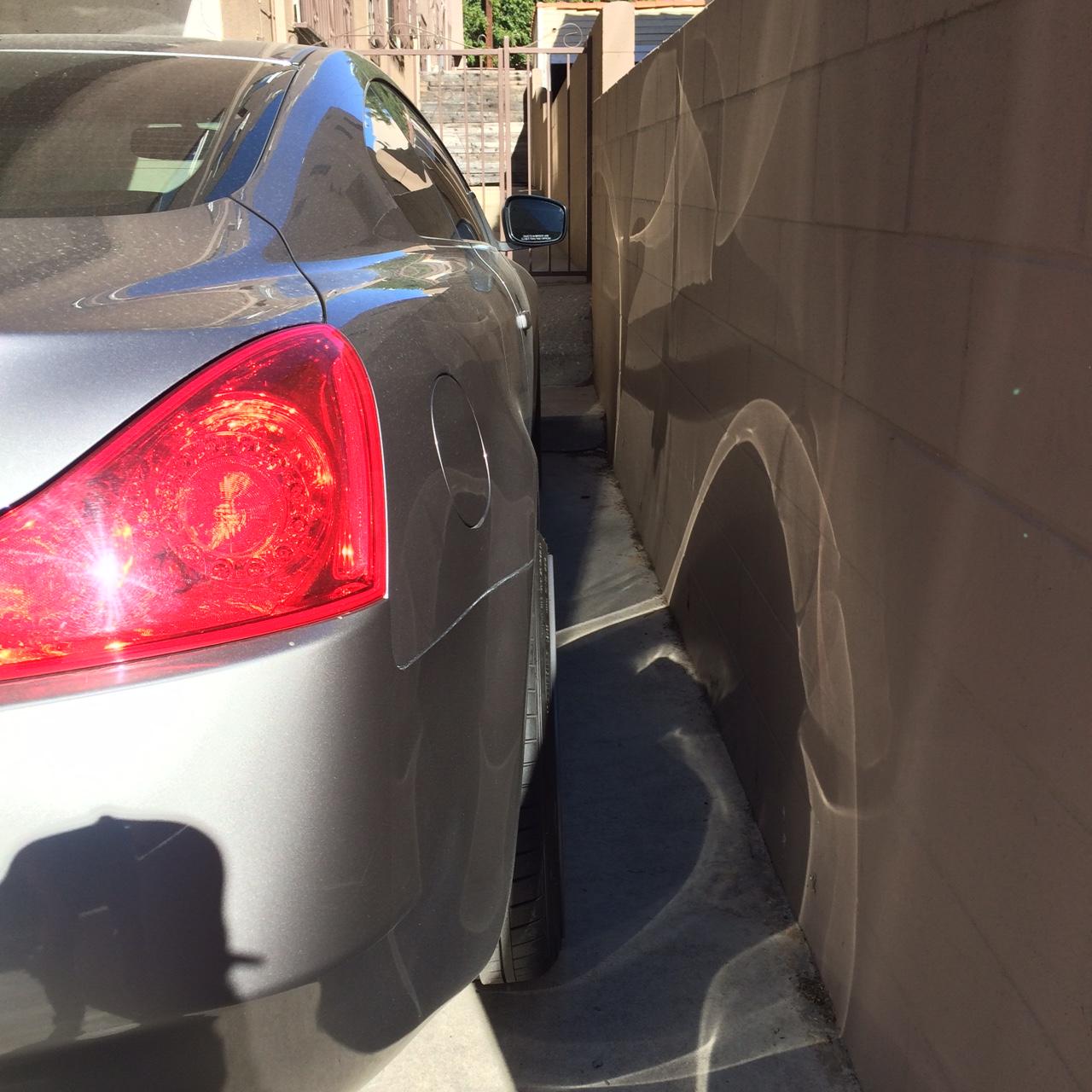

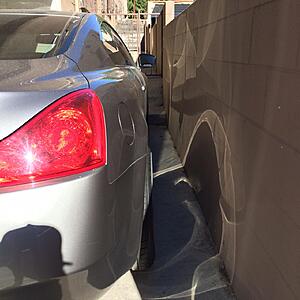

The OFFICIAL "I have a wheel offset / tire fitment question!" thread-qzejh96.jpg

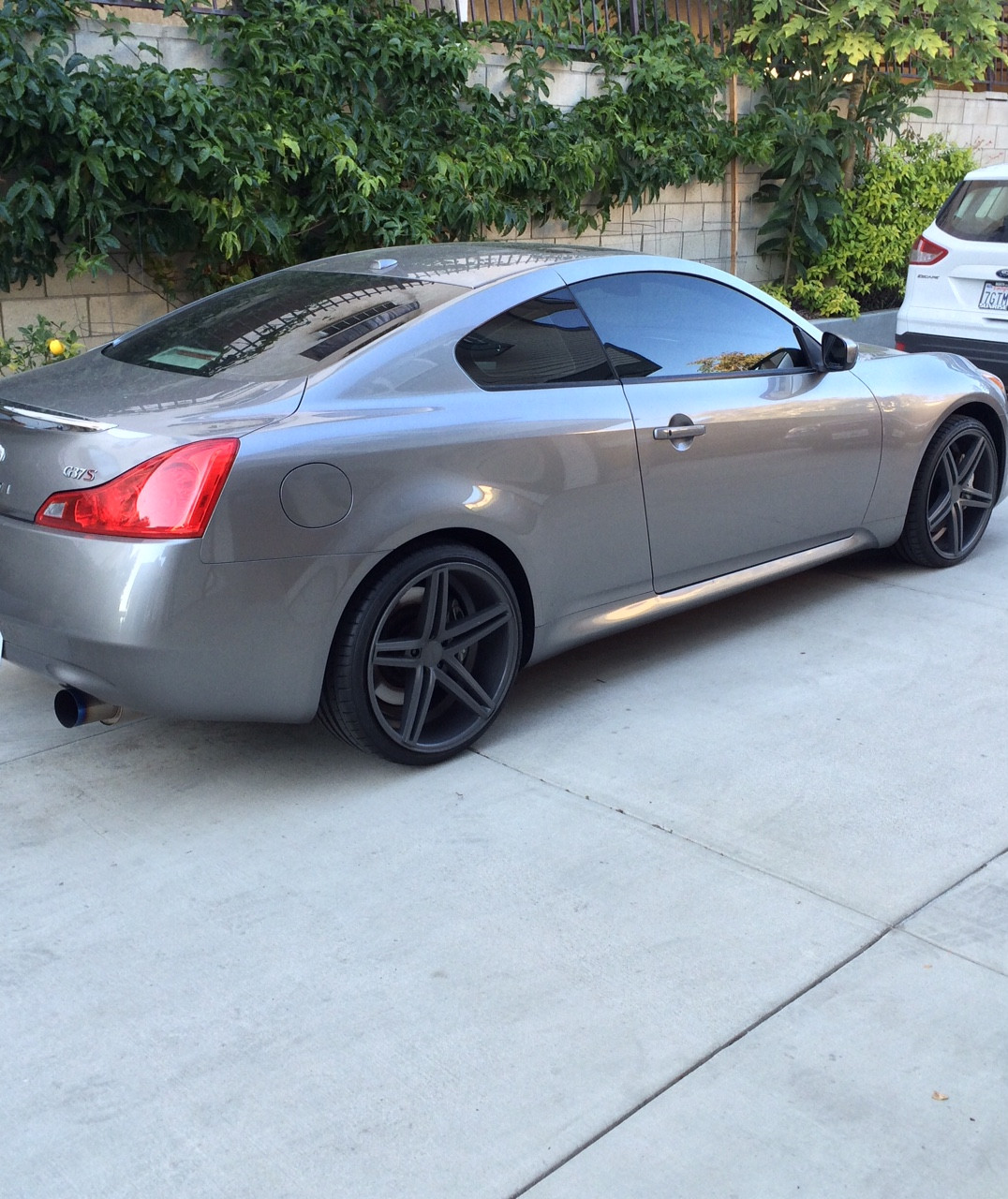

The OFFICIAL "I have a wheel offset / tire fitment question!" thread-jgglgvk.jpg
Old 01-06-2015, 08:32 PM
  #502
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,943 Likes on 4,176 Posts
The rims will still poke a bit but lowering will tuck the tires in quite a bit more that current.
Camber kits should be used when lowering your G but that's up to you. IMO it's a small price upfront for the long term benefit.
Old 01-06-2015, 08:39 PM
  #503
wblhockey14
Registered User

wblhockey14's Avatar

Join Date: Jan 2012
Posts: 116
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by blnewt
The rims will still poke a bit but lowering will tuck the tires in quite a bit more that current.
Camber kits should be used when lowering your G but that's up to you. IMO it's a small price upfront for the long term benefit.
will a camber kit affect the tuck of the tire at all?
Old 01-06-2015, 11:44 PM
  #504
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,943 Likes on 4,176 Posts
Originally Posted by wblhockey14
will a camber kit affect the tuck of the tire at all?
It will bring the bottom of the tire in as you get camber less negative and this will result in the top of the tire to come out closer to the fender, not as much as the bottom going in but it will. How much depends how low you drop and how close to spec you want your camber setting.
For what you're trying to accomplish a mild spring w/ a rear toe kit will probably suffice as long as you can deal with some increased tread wear.
Old 01-10-2015, 10:00 PM
  #505
Mulatto
Registered User

Mulatto's Avatar

Join Date: Jan 2014
Posts: 58
Likes: 0
Received 4 Likes on 4 Posts
Blnewt, hopefully this will be my last question before I purchase my wheels. I'm planning to go with a staggered setup we discussed earlier, but if I decided to run a square setup after all, how much trouble would it be to run a 20x10 +25 front wheel? would it rub and what tire size would fit best?
Old 01-10-2015, 11:31 PM
  #506
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,943 Likes on 4,176 Posts
Originally Posted by Mulatto
Blnewt, hopefully this will be my last question before I purchase my wheels. I'm planning to go with a staggered setup we discussed earlier, but if I decided to run a square setup after all, how much trouble would it be to run a 20x10 +25 front wheel? would it rub and what tire size would fit best?
Check Lt8che coupe in this post
https://www.myg37.com/forums/brakes-...ml#post3815735
He's running 9.5 +30 w/ 265s, the fit is spot-on
To get that fit w/ 10" you'd need to run a +35 offset and that 265/30/20 tire.
A 10" +25 would be 10mm further out than Lt8ches' fit.
Old 01-12-2015, 12:46 AM
  #507
evil-G-nius
Registered Member
iTrader: (1)

evil-G-nius's Avatar

Join Date: Aug 2013
Location: Santa Rosa, CA
Posts: 2,265
Received 395 Likes on 238 Posts
ok so i have read and looked at a ton of stuff about the wheels and what not. I don't really feel I know more than I did before...I just feel overloaded. So I have 2 questions which I am sure have probably been asked. If I decide to go with 19x11 all the way around with the same tire size, A: will 11 fit fin in the front? And B: What is the lowest offset (deep dish) I can run to clear the brakes on front and back?
Old 01-12-2015, 11:31 AM
  #508
blnewt
Movin On!
iTrader: (13)

blnewt's Avatar

Join Date: Nov 2009
Posts: 24,877
Received 4,943 Likes on 4,176 Posts
Originally Posted by evil-G-nius
ok so i have read and looked at a ton of stuff about the wheels and what not. I don't really feel I know more than I did before...I just feel overloaded. So I have 2 questions which I am sure have probably been asked. If I decide to go with 19x11 all the way around with the same tire size, A: will 11 fit fin in the front? And B: What is the lowest offset (deep dish) I can run to clear the brakes on front and back?
That sounds like a question for Diego@Vossen, he's pushed the bitter edge of what can fit on the coupes. That said, there's been a few that have run 10.5 squared, although all I can recall are Sedans, and those were offsets in the +35 to +38 range. So going a 1/2" wider would result in a 6mm bump, the coupes typically have about a 10mm less positive offset difference from sedans. This would result in the neighborhood of a 11" +30 give or take. I think you'd have to run a real stretched setup though.
Shoot a PM to Diego and post up what "the man" says
Here's a FS lsting w/ some aggressive fit w/ 11s on the back might shoot him a PM for more pics
https://www.myg37.com/forums/private...-part-out.html

Last edited by blnewt; 01-12-2015 at 11:38 AM.
Old 01-15-2015, 11:15 AM
  #509
LostSol
Registered User

LostSol's Avatar

Join Date: Jan 2015
Location: Central FL
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
Greetings! Im currently an owner of a 40th Anniversary 370z and am considering parting it out in the near future an picking up a 2011 G37S Convertible 6mt. Im very well aware of many of the interoperability of parts between the two cars so I already know which parts to keep, but the one thing I don't know much about on the G is wheel fitment.

I know its gonna be a stretch, but is there any way to fit my current wheels with a mild drop on the car Im looking to get (think Swift springs):

Forgestar CF5V
Front: 19x10 +30 275/35R19
Rear: 19x11 +18 305/30R19

I appreciate your help and expertise!
Old 01-19-2015, 07:04 PM
  #510
camry90
Registered User

camry90's Avatar

Join Date: Jan 2015
Location: Montreal
Posts: 15
Received 1 Like on 1 Post
Is the "+22 flush all around" rule of thumb applicable for X sedan also?
