Intake and Exhaust The ultimate forum to ask, discuss, and answer tech related questions regarding MyG37 intake and exhaust.

BERK HFC's dyno tested!!!

Thread Tools

Search this Thread

Old 05-20-2008 | 10:34 PM
  #1
G35Tuning's Avatar
G35Tuning
Thread Starter
Registered User

Joined: Jan 2004
Posts: 233
Likes: 0
BERK HFC's dyno tested!!!

First things first...

Huge thanks to Vince at RTtuning for a flawless and quick install...I was shopping around for tuner shops in the PA area and came across some info about the work at RTtuning...They are located in Lansdale, PA and they were awesome from start to finish...Anyone who needs work done in the PA area should really contact these guys and get the excellent customer service and work that I got...

On to the HFC's...

Sound: Everything on the car is stock...The only change was the Berk HFC's and I'll be damned if I add ANY aftermarket exhaust after driving home to the new sound of my G...Absolutely incredible...While cruising there is next to no difference in exhaust note...No drone at all...Give her some gas and it sounds like your unleashing an absolute monster...Puts my G35 coupe exhaust to shame...Very aggressive sound that is rather intoxicating...Anyone who is looking into buying an $1100 exhaust just to get a sweeter sound should really consider these HFC's for half the price...When you rev it in idle the car is LOUD...But under load at full throttle its load, but nothing bothersome...Again, very MEAN sounding and just incredible IMO...

Performance: Unfortunately it rained all day today...So the roads were slick when I left the shop which didn't allow me to make any hard pulls through all RPM's...However, I did hit it many times in 3rd and 4th gear and definately felt an increase in power...The dyno shows a good gain in HP and TQ in the middle RPM range around 4.5-5.5k rpms...I have to take a better look at the dyno because I only quickly looked at the shop...

At peak HP we saw gains of around 9whp and 9lbs tq...There are sections in the middle RPM range where 10-15 hp and tq are gained if I remember correctly...I'm having trouble posting the dynos...Can anyone post them if I send them via email? Any questions, just ask...

Last edited by G35Tuning; 05-20-2008 at 11:18 PM.
Old 05-20-2008 | 10:40 PM
  #2
MaxToTheG37's Avatar
MaxToTheG37
Super Moderator w/ Boost
iTrader: (3)

Joined: Dec 2007
Posts: 7,042
Likes: 4
From: Knoxville TN
post as an attachment...
Old 05-20-2008 | 10:41 PM
  #3
TerribleONE453's Avatar
TerribleONE453
Registered User

Joined: Oct 2007
Posts: 4,404
Likes: 5
From: Chatsworth CA
yea.... ^
Old 05-20-2008 | 10:58 PM
  #4
G35Tuning's Avatar
G35Tuning
Thread Starter
Registered User

Joined: Jan 2004
Posts: 233
Likes: 0
Damn it...This is my first time with this stuff ...He sent me the dyno's via email...Will you all be able to read them if I just post as attachments?
Old 05-20-2008 | 11:00 PM
  #5
MaxToTheG37's Avatar
MaxToTheG37
Super Moderator w/ Boost
iTrader: (3)

Joined: Dec 2007
Posts: 7,042
Likes: 4
From: Knoxville TN
send them to me and ill send what I can do if you cant...

bbeeler12 at aol.com
Old 05-20-2008 | 11:03 PM
  #6
TerribleONE453's Avatar
TerribleONE453
Registered User

Joined: Oct 2007
Posts: 4,404
Likes: 5
From: Chatsworth CA
yea attach them... ben and i will know whats up
Old 05-20-2008 | 11:12 PM
  #7
G35Tuning's Avatar
G35Tuning
Thread Starter
Registered User

Joined: Jan 2004
Posts: 233
Likes: 0
I threw out the dyno sheets that showed 20 plus HP differences in the middle RPM's because the VVT clearly was playing games with those...These were the two closest before and after tests in terms of how the HP and TQ curves reacted... Hope this works..

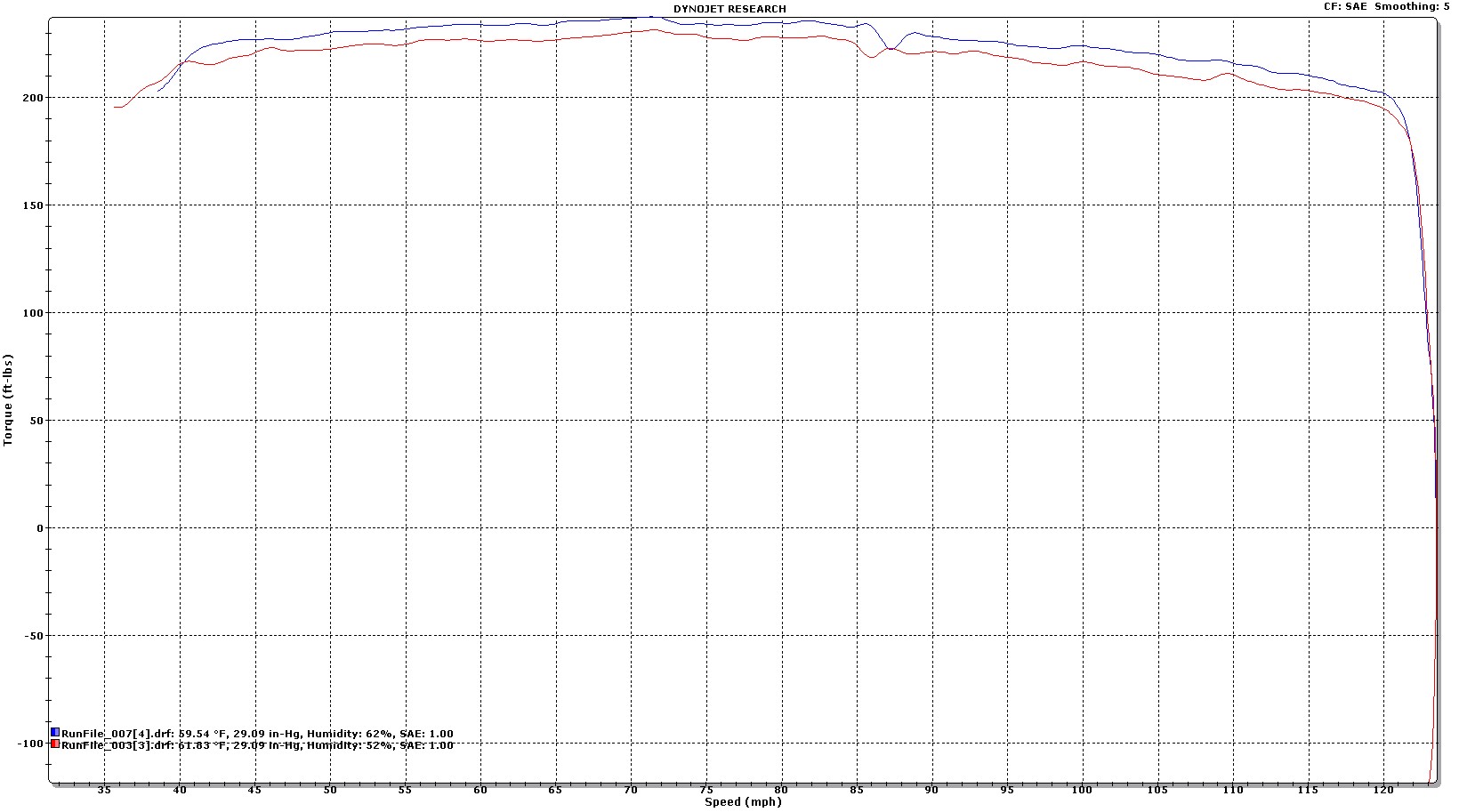

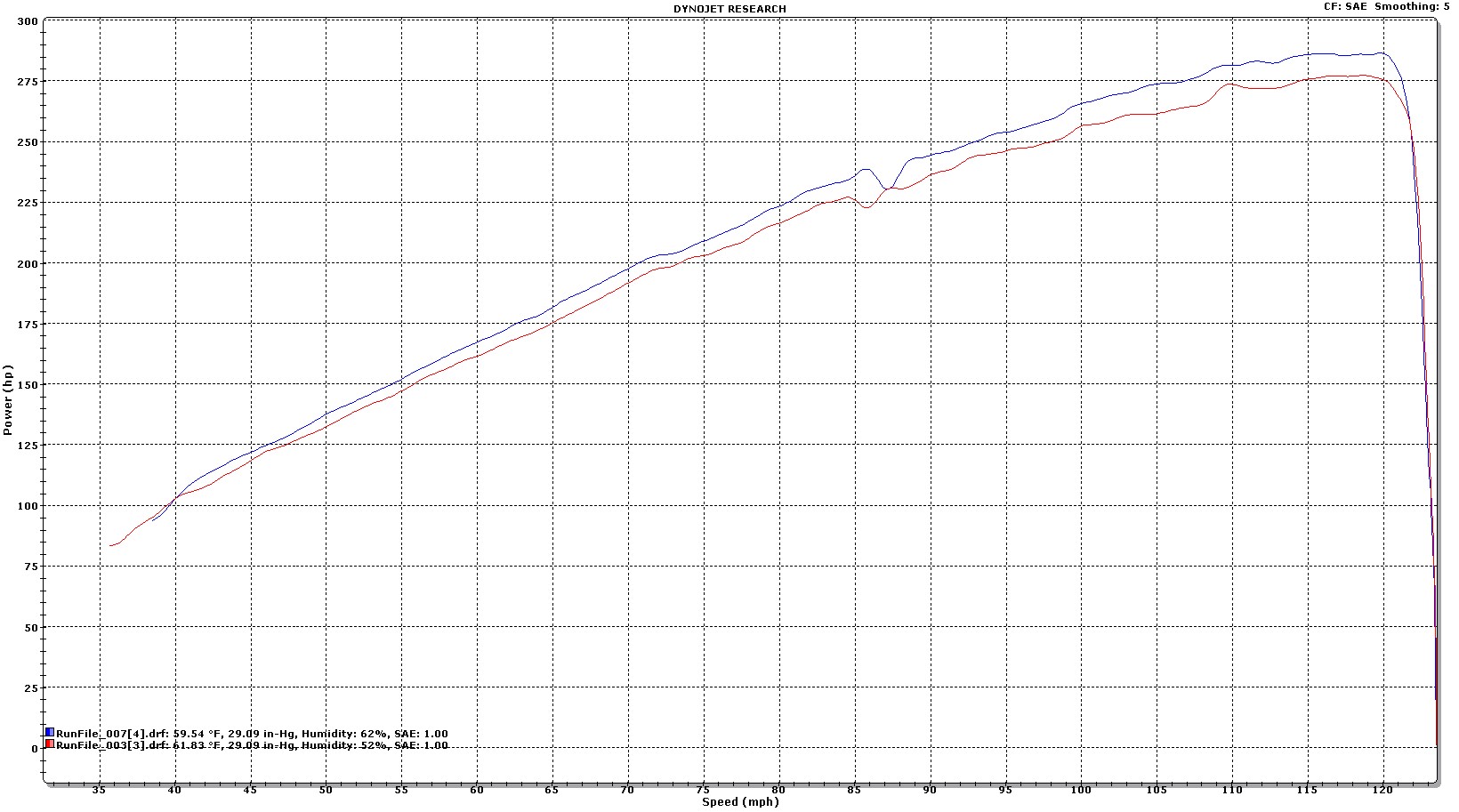

Attached Thumbnails BERK HFC's dyno tested!!!-dyno-hp.jpg   BERK HFC's dyno tested!!!-dyno-torque.jpg
Old 05-20-2008 | 11:35 PM
  #8
MaxToTheG37's Avatar
MaxToTheG37
Super Moderator w/ Boost
iTrader: (3)

Joined: Dec 2007
Posts: 7,042
Likes: 4
From: Knoxville TN
you should post them all...
Old 05-20-2008 | 11:38 PM
  #9
G35Tuning's Avatar
G35Tuning
Thread Starter
Registered User

Joined: Jan 2004
Posts: 233
Likes: 0
You want all 4 runs? Ok....Also Vince suggested that he'd expect a bit more out of this setup with a battery reset so the ECU can learn everything with the HFC's from the get go...
Old 05-20-2008 | 11:43 PM
  #10
G35Tuning's Avatar
G35Tuning
Thread Starter
Registered User

Joined: Jan 2004
Posts: 233
Likes: 0

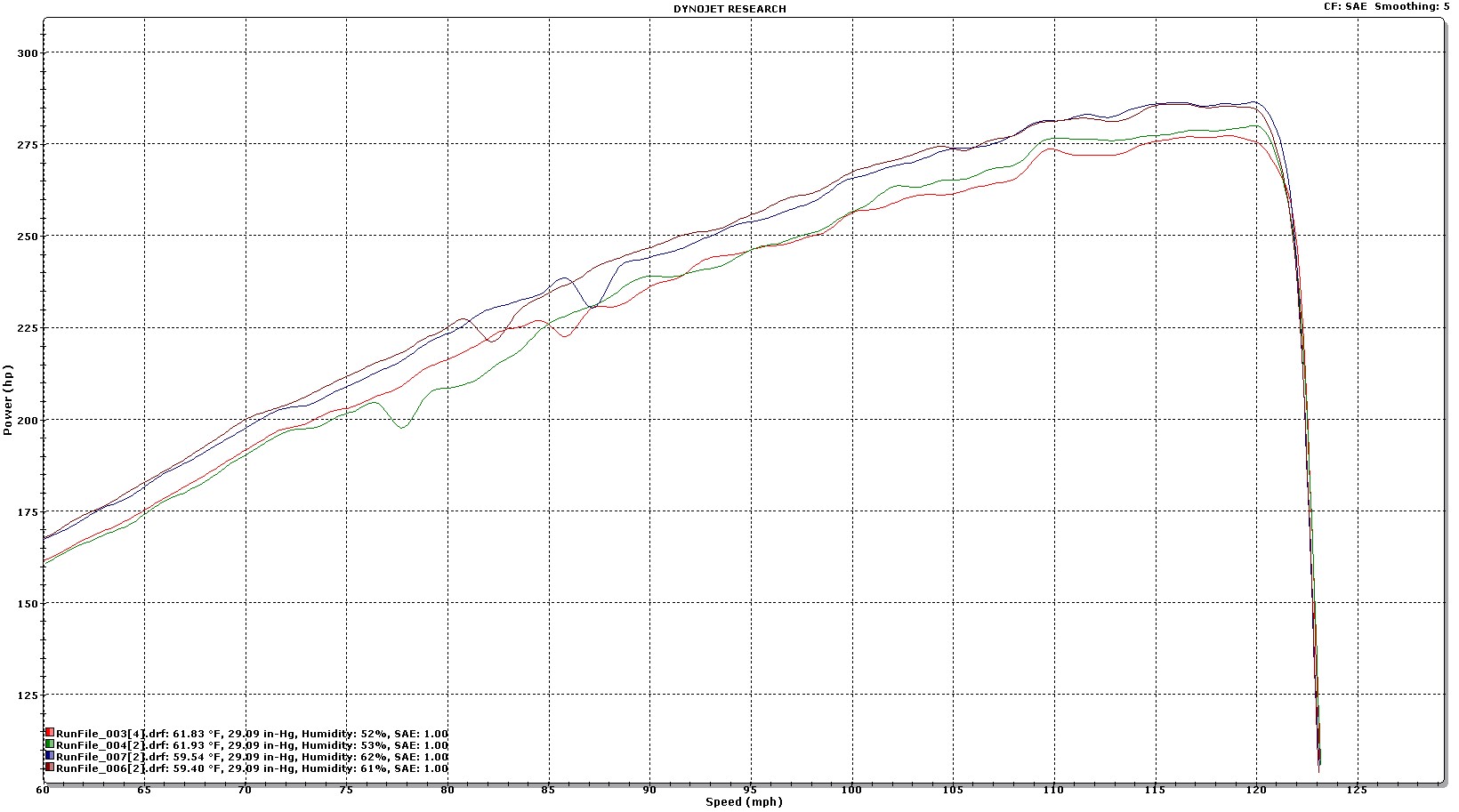

Here is a dyno with 4 runs...2 before and 2 afters...Of the WHP...

It is all on one sheet...I also dont know how to add the HP and TQ numbers to the sheet...Sorry...Can anyone tell the exact gains?
Attached Thumbnails BERK HFC's dyno tested!!!-all.jpg

Last edited by G35Tuning; 05-20-2008 at 11:50 PM.
Old 05-20-2008 | 11:51 PM
  #11
NJKSC27's Avatar
NJKSC27
Registered User

Joined: Apr 2008
Posts: 330
Likes: 1
From: Jersey Shore
am i reading it correctly or do i see a nice 12whp gain???
Old 05-20-2008 | 11:53 PM
  #12
MaxToTheG37's Avatar
MaxToTheG37
Super Moderator w/ Boost
iTrader: (3)

Joined: Dec 2007
Posts: 7,042
Likes: 4
From: Knoxville TN
wow it did get crazy there for a second...
Old 05-21-2008 | 12:01 AM
  #13
G35Tuning's Avatar
G35Tuning
Thread Starter
Registered User

Joined: Jan 2004
Posts: 233
Likes: 0

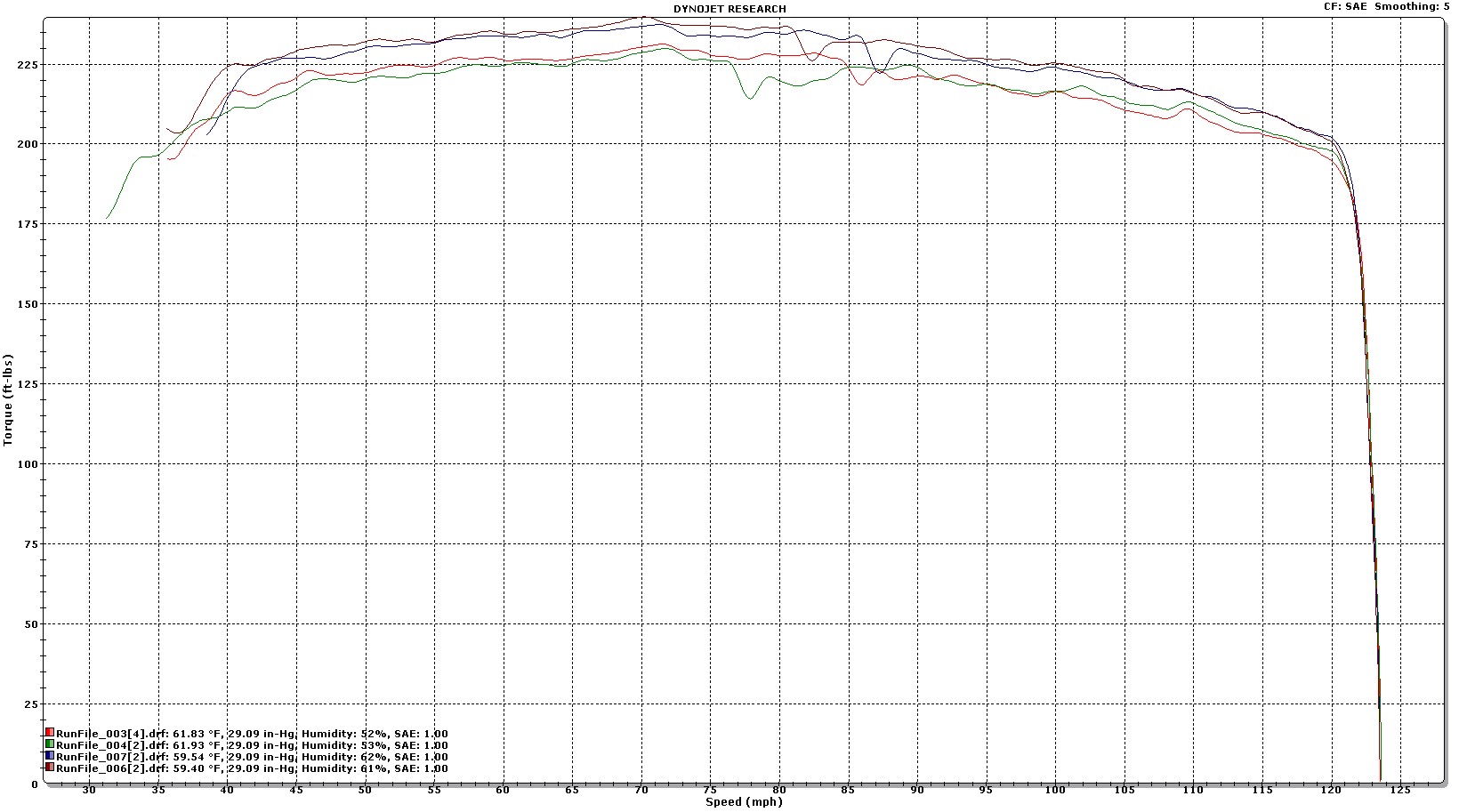

And here are the 4 tq runs...
Attached Thumbnails BERK HFC's dyno tested!!!-final-4-torque.jpg
Old 05-21-2008 | 12:03 AM
  #14
G35Tuning's Avatar
G35Tuning
Thread Starter
Registered User

Joined: Jan 2004
Posts: 233
Likes: 0
Originally Posted by MaxToTheG37
wow it did get crazy there for a second...

Ok so what are your thoughts? Anyone care to read the exact numbers?
Old 05-21-2008 | 12:05 AM
  #15
NJKSC27's Avatar
NJKSC27
Registered User

Joined: Apr 2008
Posts: 330
Likes: 1
From: Jersey Shore
Originally Posted by G35Tuning
Ok so what are your thoughts? Anyone care to read the exact numbers?
they should have been able to spit out your MAX gains

also seems that the conditions were slightly off

Last edited by NJKSC27; 05-21-2008 at 12:09 AM.
