leak near rear differential
01-24-2013, 11:21 PM
#46
Registered Member
Just like in the picture I dropped the diff out took the sways everything out and I drilled a couple holes into the rear dif bushing stuck a hack saw with a metal cutting blade in and cut the rear bushing out because there was no give. Ill take a picture once I'm off work
01-27-2013, 08:20 PM
#47
Registered Member
I didnt have a press or a tool big enough to pull this out. remember when doing this do it from the inside out towards the rear of the car. If you try to force the bushing out towards the front it will not come out. Same goes for installation it will be put in from the back

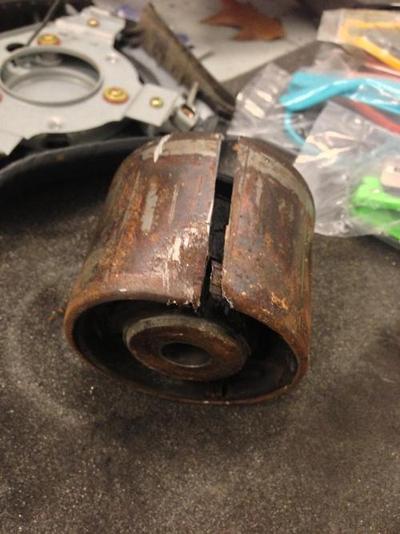

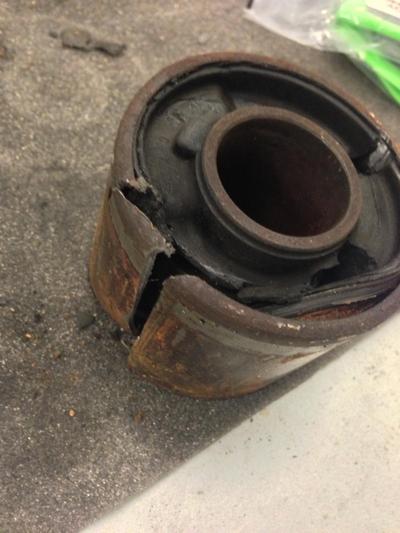

I drilled a couple holes for the saw to fit in which would allow for over 1mm to be taken off of the bushing because this thing was not coming out with a hammer

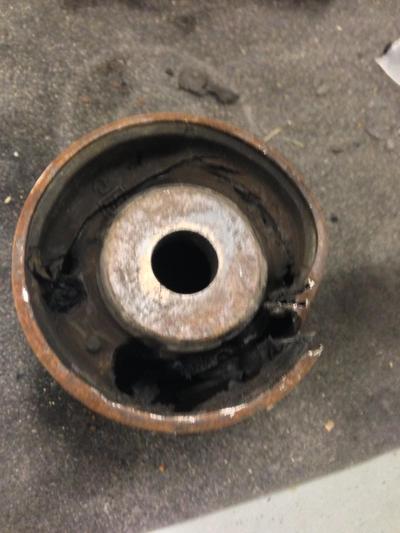

I pried a bit back to give me more wiggle room and it fell right out after a bit of a fight
Just remember to take some course sand paper and sand the inside of the bushing walls, removing all the old rust. This it will make the install much easier

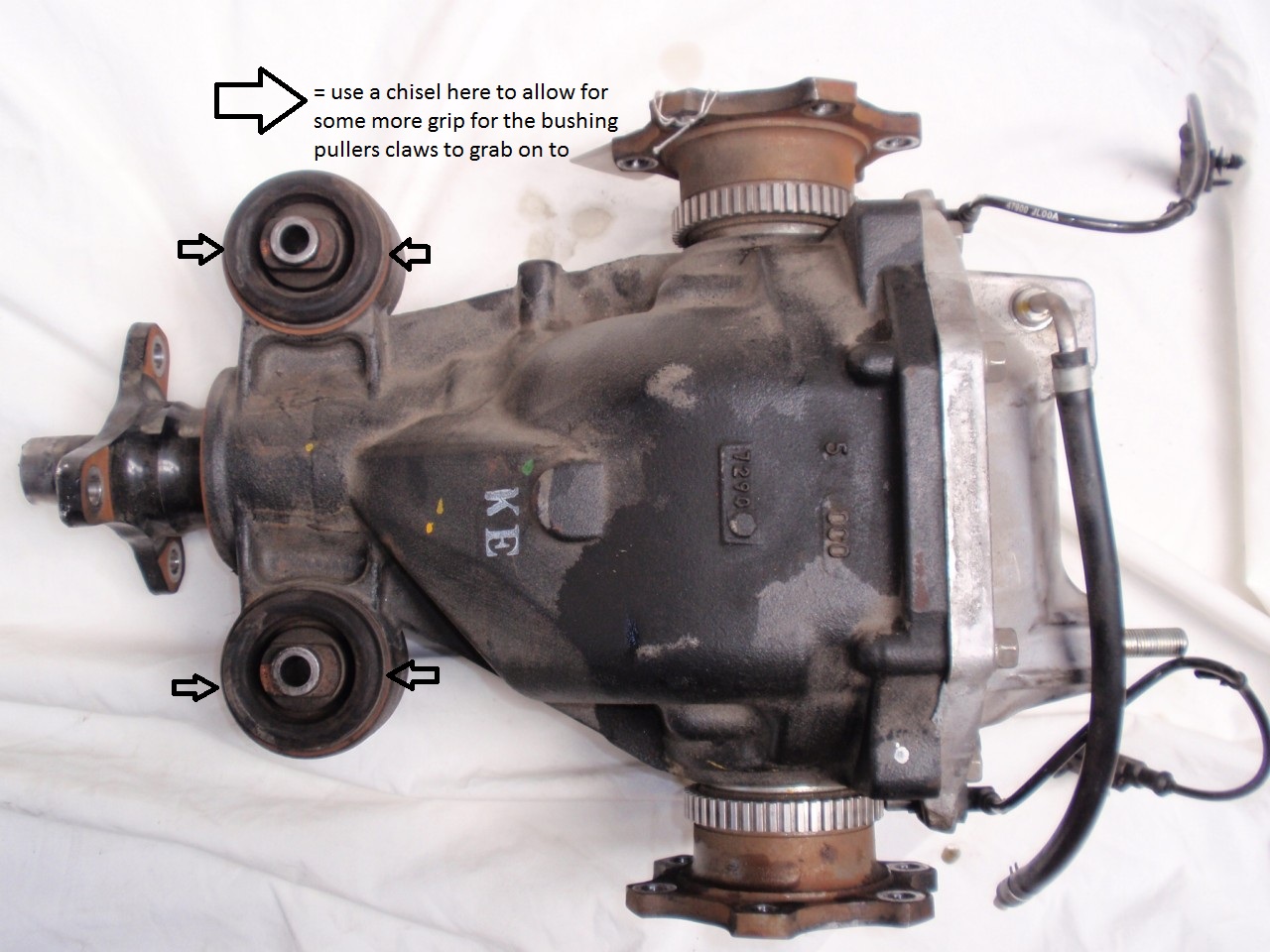

I bet of you took a chisel to the corners and hammered them inward it would work as well but I never tried that on the rear but thats how I got the differential "ear" bushing out. I hammered the chisel right into where the bushing sits with the ear to make some room for my bearing press to get some grip
I used this tool but with longer claws to push the bushing out.
I drilled a couple holes for the saw to fit in which would allow for over 1mm to be taken off of the bushing because this thing was not coming out with a hammer
I pried a bit back to give me more wiggle room and it fell right out after a bit of a fight
Just remember to take some course sand paper and sand the inside of the bushing walls, removing all the old rust. This it will make the install much easier
I bet of you took a chisel to the corners and hammered them inward it would work as well but I never tried that on the rear but thats how I got the differential "ear" bushing out. I hammered the chisel right into where the bushing sits with the ear to make some room for my bearing press to get some grip
I used this tool but with longer claws to push the bushing out.
02-24-2013, 11:07 PM
#50
Just finished reverse engineering a solution to this, and am having a machine shop fab up an aluminum and urethane replacement, because it's utter horsesh.. that there is not a replacement offered other than an SPL solid. No one that wants to keep their NVH reasonable would put a solid in. I'm going to start with an 80A durometer insert to see how the mount reacts under load, but I have designed my solution to utilize stock urethane tube sizes so if i want to try out a different stiffness they only need to be cut to length and not machined or molded. The urethane can also be replaced once the unit is installed, just remove the center bolt, pull the collar and remove the urethane insert. The OD collar stays in the subframe.
I'll post pics and let everyone know how it turns out in a few weeks once the unit has been fabbed and installed.
I'll post pics and let everyone know how it turns out in a few weeks once the unit has been fabbed and installed.
02-25-2013, 12:03 PM
#51
Since the diff is mounted to the subframe, any suspension change would not affect it. At least the mounting bushing. If it were the CV joints, they could use the angle excuse.
I haven't been there yet,my warranty is good for 8 years 120,000 miles!!
02-27-2013, 12:58 PM
#52
Bushings like this are intentionally a few nanometers larger than the hole so that they fit tightly. Do you mean it's a few millimeters too big? That's different. The urethane ones are much easier to fit if you freeze them as hard as possible before installing. I wonder if this would work... Also what about the other two bushings, how did they fit?
Thanks for the photo. I may try the Whiteline urethane set and simply mill off as much as I need to if it is too big.
Thanks for the photo. I may try the Whiteline urethane set and simply mill off as much as I need to if it is too big.
The info from SPL:
G35 bushing.......75.3mm
G37 bushing.......73.8mm
Im sure you or I can lathe off 1.5mm from a Urethane Whiteline bushing!!
02-27-2013, 03:59 PM
#53
Good info. Not only do I now know it's doable, but I know how to do it. It's on the list. Just not at the top. Kind of halfway down. Just got one thing scratched off last week, got to move on to a couple of other things before show season gets into full swing.
02-27-2013, 09:02 PM
#54
Freezing wont work, by the time you run from the freezer, bolt it on to the diff cover, lift the diff, line up the bushing, push the diff back with the bushing attached, its back to size,
You cant use liquid nitrogen, nor dry ice, as the urethane will break.
03-01-2013, 06:21 PM
#57
Here's Z1's acknowlegment, at least its not a denial!!
I believe it can be done with NO mods. Urethane is compliant!!
Last edited by TVPostSound; 03-01-2013 at 06:27 PM.
