2008 to 2010 sedan front end conversion
The following users liked this post:
vladhypp (06-02-2015)
06-02-2015, 01:14 AM
#19
Registered User
Thread Starter
Great. I've had my front emblem custom done in black chrome so I'd prefer to keep it and reuse it with the new grill. The car's getting a complicated custom build right now, but I'll post up some pics when it's all done.

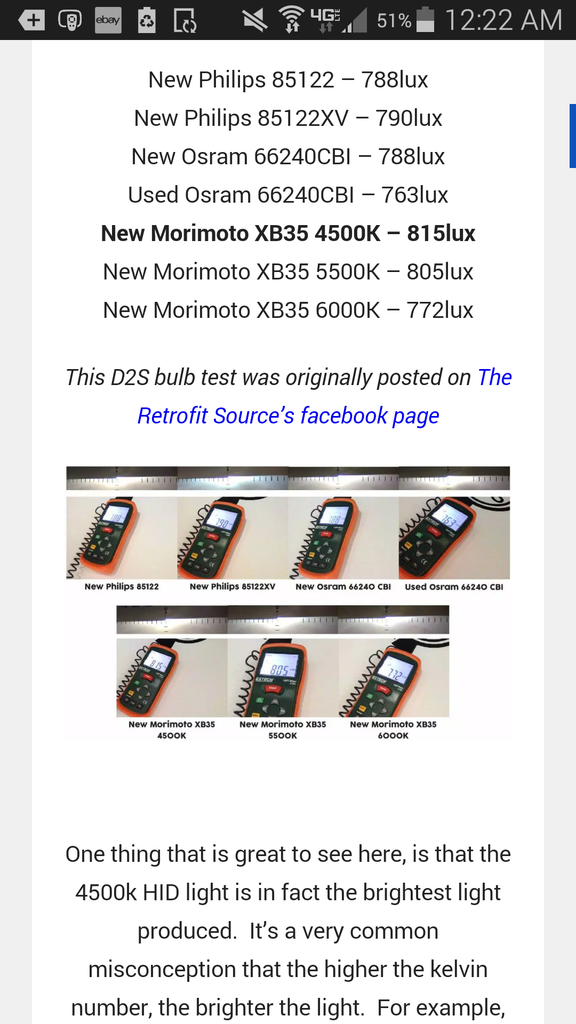

Oh, and thanks for mentioning you experience with the HID replacement bulbs. I've been looking at getting some Morimoto 5500 bulbs to use with my front end sway and now I think you've sold me on them. Can you tell us all where you got them?
Oh, and thanks for mentioning you experience with the HID replacement bulbs. I've been looking at getting some Morimoto 5500 bulbs to use with my front end sway and now I think you've sold me on them. Can you tell us all where you got them?
i went with the 5500k from ebay...legit and fast shipping!
http://www.ebay.com/itm/D2S-MORIMOTO-XB35-HID-BULBS-OEM-REPLACEMENT-2-YEAR-WARRANTY-/261804592316?var=&hash=item3cf4c50cbc&vxp=mtr
The following users liked this post:
2GoRNot2G (06-02-2015)
06-03-2015, 02:24 AM
#21
Registered User
Thread Starter
08-26-2015, 11:38 AM
#23
Premier Member
My next mod
I bought a brand new front grill bumper for $50, Windshield washer tank for 75 coming soon
hope I have everything by December and start the new mod next year.
I bought a brand new front grill bumper for $50, Windshield washer tank for 75 coming soon
hope I have everything by December and start the new mod next year.
01-27-2016, 10:42 PM
#24
03-14-2017, 09:49 PM
#25
Hate to revive an old thread, but how exactly did you wire the fog lights? I'm having some trouble with mine, I soldered the new HID wires to the 07-09 harness but they still aren't working. It actually caused both blinkers to flash quickly, so no idea what's going on. Pictures would be extremely helpful!
03-15-2017, 03:14 PM
#27
I'm not the OP but I will assist you because I had the same question as you.
I have a thread somewhere regarding that information and the wire colors that explains the answer to your question. The 09 has the fog light harness intergrated with the headlight harness. There are two wires that need to be tapped, which is what I did. Some people cut those wires. I didn't I just tapped into them with the t-taps. I will search that link and post it for you.
03-15-2017, 03:19 PM
#28
Here you go. I hope this is enough to rectify your problem. I copied and pasted the information directly from that link.
UPDATE: I successufully completed the wiring for the fog lights, since no one actually posted the specific wires that need to be tapped. YOU WILL NEED A TEST LIGHT to make sure you tapped the correct wires. This was from a 2009 G37 sedan. I don't know if other years use different colors. You have to tap the FACTORY harness that is connected to the headlight connector. DRIVER'S SIDE: POSITIVE wire is BLUE; NEGATIVE: BLACK/WHITE STRIPE; PASSENGER SIDE: POSITIVE wire; WHITE/BLACK STRIPE; NEGATIVE wire: BLACK/WHITE stripe
I WILL NOT BE HELD RESPONSIBLE FOR ANYONE'S VEHICLE OR MISTAKE. AS A RESULT, YOU ARE MODIFYING YOUR HARNESS AT YOUR OWN RISK.
The link is below for your reference, if you want it.
https://www.myg37.com/forums/g37-sed...onversion.html
UPDATE: I successufully completed the wiring for the fog lights, since no one actually posted the specific wires that need to be tapped. YOU WILL NEED A TEST LIGHT to make sure you tapped the correct wires. This was from a 2009 G37 sedan. I don't know if other years use different colors. You have to tap the FACTORY harness that is connected to the headlight connector. DRIVER'S SIDE: POSITIVE wire is BLUE; NEGATIVE: BLACK/WHITE STRIPE; PASSENGER SIDE: POSITIVE wire; WHITE/BLACK STRIPE; NEGATIVE wire: BLACK/WHITE stripe
I WILL NOT BE HELD RESPONSIBLE FOR ANYONE'S VEHICLE OR MISTAKE. AS A RESULT, YOU ARE MODIFYING YOUR HARNESS AT YOUR OWN RISK.
The link is below for your reference, if you want it.
https://www.myg37.com/forums/g37-sed...onversion.html
08-08-2018, 01:33 AM
#29
Registered User
Join Date: Jul 2012
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Hello G peeps. I'm looking to do a 2009 sedan front conversion to 2010+ as well but I'm having the hardest time finding a good place to purchase the sport bumper. Can someone please point me in the right direction with a link?
08-14-2018, 12:43 PM
#30
https://www.infinitipartsonline.com/...Y2LWdhcw%3D%3D
